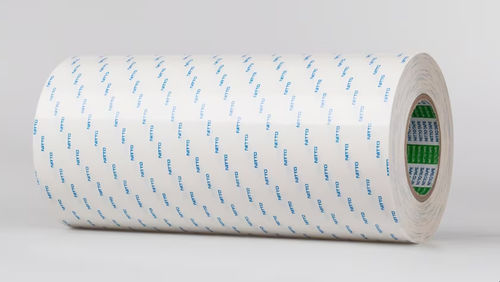

Double-sided adhesive tape 5015E

non-wovenpaper lineracrylic

Product overview
Nitto double-coated tape 5015E consists of a non-woven tissue carrier coated on both sides with a pressure-sensitive modified acrylic adhesive. It is designed for a wide range of mounting and sealing applications, including production of self-adhesive foams and bonding of graphic overlays and plastic components on low surface energy substrates.

Features

• High resistance to repulsion
• Wide operating temperature range
• High adhesion to low surface energy and difficult-to-bond materials
• Carrier identification by imprint
• RoHS compliant
• UL certified: UL 746A / UL 746C

Structure

• Modified acrylic adhesive (face side)
• Non-woven tissue carrier
• Modified acrylic adhesive (opposite side)
• Release liner (siliconised paper)

Properties
Adhesive type: Pressure-sensitive modified acrylic adhesive
Tape thickness*: 0.160 mm (6.30 mil)
Release liner: Siliconised white Nitto paper (typical)
Carrier type: Non-woven tissue
Adhesion value: 16 N/20 mm (73 oz/in)
Typical peel value: 16 N/20 mm (73 oz/in)

*) Tape thickness = total thickness without liner. The values above are typical and should not be used for written specifications. Test method details are provided in the product specifications for customers.

Applications
Nitto 5015E is intended to make foams self-adhesive for a wide variety of sealing applications, especially where assemblies are exposed to high stresses such as in automotive applications. It is also used for bonding graphic overlays, plastic plates and molds, including substrates with low surface energy.

Technical characteristics / specifications

• Product reference: 5015E
• Type: Double-coated tape with non-woven carrier
• Adhesive: Modified acrylic
• Total thickness (without liner): 0.160 mm
• Release liner: Siliconised white Nitto paper (typical)
• Typical peel/peel value: 16 N/20 mm (73 oz/in)
• Static shear resistance (typical): 1 mm / 3 h (typical test)
• Recommended storage temperature: 15–30 °C
• Recommended storage humidity: 40–75 % RH
• Compliance: RoHS
• Certifications: UL 746A / UL 746C
• Recommended use: Self-adhesive foam production, sealing, automotive applications, bonding graphic overlays and low surface energy plastic parts
