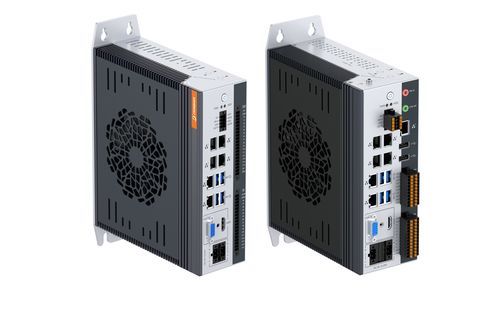

Expansion PC NP-6120 Series

boxwall-mountedDIN rail

NP-6120-16I16O | Automation PC with 6 LAN, RS232/RS485, 16 DI/16 DO
DIN-rail/wall-mount Automation PC with Intel® Core™ 6th–8th Gen CPUs, 6 GbE LAN, RS232/RS485, 16 DI/16 DO, SSD storage, Mini PCIe expansion, and DC12–24V input.

Features

• Supports Intel(r) CoreTM 6th-8th Gen i7/i5/i3, Pentium, Celeron processors (LGA1151)
• 6 × Intel(r) GbE LAN ports (I210 and I219 controllers)
• 1 × RS232, 1 × RS485 serial interface
• 16 × DI, 16 × DO (NPN/PNP selectable)
• 1 × M.2 SSD 2242, 1 × M.2 SSD 2280, 1 × SATA SSD storage
• 1 × Mini PCIe expansion slot with SIM card holder
• VGA up to 1920×1080@60Hz, HDMI up to 3840×2160@30Hz
• Active cooling with aluminum-magnesium alloy housing
• DIN-rail or wall-mount installation
• 12-24V DC input with overcurrent, overvoltage, and reverse polarity protectio

NP-6120-EX01 | Automation PC with 7 LAN, 6×COM, 8 DI/8 DO
Active-cooled DIN-rail/wall-mount Automation PC with Intel® Core™ 6th–8th Gen CPUs, 7 GbE LAN, 6 serial ports, 8 DI/8 DO, SSD storage, and DC12–24V input.

Features

• Supports Intel(r) CoreTM 6th-8th Gen i7/i5/i3, Pentium, Celeron processors (LGA1151)
• 7 × Intel(r) GbE LAN ports (6 × I210, 1 × I219-V)
• 2 × RS232, 4 × RS485 serial interfaces
• 8 × DI, 8 × DO (NPN/PNP selectable)
• 1 × M.2 SSD 2242, 1 × SATA SSD storage
• 1 × Mini PCIe expansion slot with SIM card holder, CAN/3G/4G modules optional
• VGA up to 1920×1080@60Hz, HDMI up to 3840×2160@30Hz
• Active cooling with aluminum-magnesium alloy housing
• DIN-rail or wall-mount installation
• 12-24V DC input with overcurrent, overvoltage, and reverse polarity protection

DESCRIPTION
The NP-6120 series is a control-cabinet automation PC for industrial gateways, production-line control, soft PLC, virtual control and data acquisition. Based on Intel 6th to 8th Gen Core LGA1151 processors, it combines multi-LAN networking, serial communication and high-density digital I/O in a wall-mount or DIN-rail chassis with active cooling.

AVAILABLE CONFIGURATIONS

• NP-6120-16I16O: 6 GbE, 1 RS232, 1 RS485, 16 DI and 16 DO.
• NP-6120-EX01: 7 GbE, 2 RS232, 4 RS485, 8 DI and 8 DO.
