Thickness measuring instrument Beta 300

radiometricionizationnon-contact

Overview

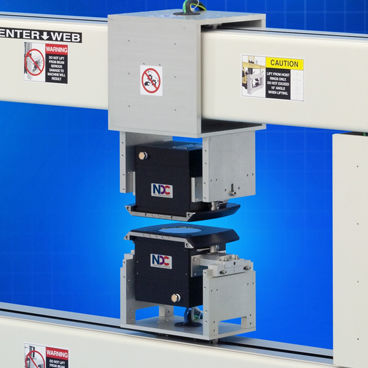

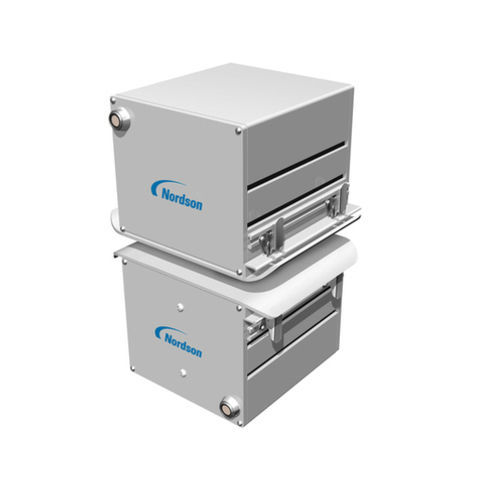

The Beta 300 is a beta transmission gauge for online, non-contact measurement of thickness and basis weight on continuous web products. Each Beta sensor is configured to the specific web application to ensure optimal measurement performance. Nordson’s minimized-activity source design uses smaller, lighter source capsules and reduced shielding to produce a compact head with lower radioactivity. The detector features a high-efficiency ion chamber with a specially welded thin window filled with denser inert gas at higher pressure and lower ionization potential, delivering increased measurement sensitivity and superior nuclear statistics. A collimator over the detector window creates broad alignment plateaus that reduce sensitivity to z-direction displacement between source and receiver.

Features & Benefits

• High-precision, non-contact thickness and basis weight measurement
• Streak resolution to 1.0 mm
• Fast 5 millisecond signal response for high-speed processing
• Wide passline and flutter tolerance
• High-efficiency ion chamber detector
• Minimized-activity source design (smaller capsules, reduced shielding)
• Proprietary noise-immune signal processing for stable readings
• Explosion-proof ATEX option available for hazardous environments
• Compact head design and easy maintenance

Applications

• Converted products
• Extruded film and sheet
• Calendered products
• Aluminum foil
• Textiles and nonwovens

Technical specifications

• Model: Beta 300
• Measurement principle: Beta transmission for thickness and basis weight
• Measurement mode: Non-contact online measurement of continuous web products
• Signal response time: 5 milliseconds
• Streak resolution: 1.00 mm (≤ 1/32 in)
• Detector: High-efficiency ion chamber with specially welded thin window and denser inert gas fill
• Source design: Minimized-activity capsules and reduced shielding
• Collimator: Over detector window to create alignment plateaus
• Signal processing: Proprietary noise-immune electronics
• Options: ATEX explosion-proof model available
• Maintenance: Designed for easy maintenance
