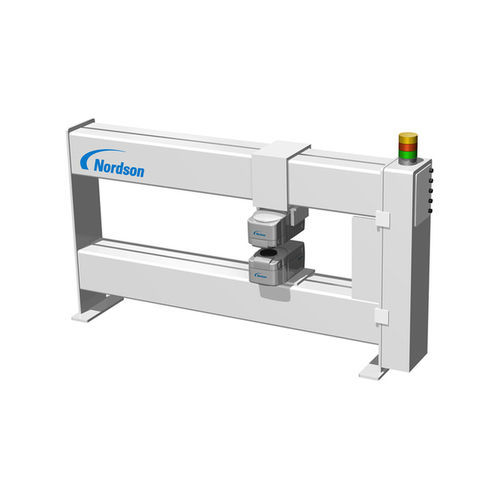

1-axis scanner MiniTrak O-Frame

measurementweblaser

Overview
The MiniTrak O-Frame web gauging scanner provides fast, accurate, and reliable inline measurement performance integrated into an intelligent distributed gauging architecture. The compact 8-inch box-section frame supports through-product gauges such as near-infrared (NIR), X-ray and beta and can accommodate up to two quality sensors for combined or redundant measurements.

Key features

• Compact, stiff O-frame design with 8-inch box section for installation in constrained process locations.
• Supports up to two quality sensors for combined measurements or redundancy.
• Compatible with through-web gauging technologies: near-infrared (NIR), X-ray and beta.
• Designed for integration into distributed, intelligent web gauging and control systems.
• Available across a wide range of web widths to suit various production lines.

Supported sensors / typical sensor pairings

• FilmPro — Infrared thickness gauge (NIR)
• Series 9 — Moisture & coat weight gauge
• GBS — Gamma thickness gauge
• Photon — Electrode coat weight gauge

Applications
Inline web gauging for coating, film, converting and other continuous-web processes where through-product measurement (thickness, coat weight, moisture, substrate properties) is required for process control and quality assurance.

Technical specifications

• Model family: MiniTrak O-Frame
• Manufacturer: Nordson
• Frame structure: 8-inch box section (compact, high stiffness)
• Sensor capacity: Up to 2 quality sensors
• Compatible gauge types: Near-infrared (NIR), X-ray, beta (through-product measurement)
• Available web widths: 575 mm to 4325 mm (22.6 in to 170 in)
• Typical uses: Coating thickness, coat weight, moisture measurement, substrate inspection in continuous web processes
