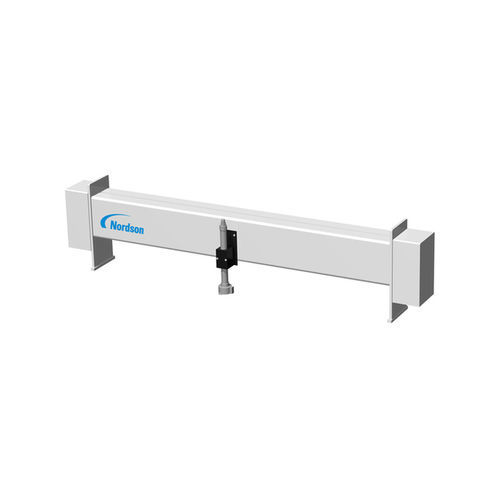

1-axis scanner MiniTrak S-Frame

measurementwebsheet

Overview
The MiniTrak™ S-Frame is a single-sided scanning frame designed to integrate with Nordson intelligent sensor families for on-line measurement of moving web materials. It supports both backscatter and reflection sensor technologies and is suitable for gauges that measure one side of the web such as near-infrared (NIR), X-ray, gamma backscatter and optical thickness. The head carriage features a sealing brush system to exclude particulates and the frame underside is closed to prevent contaminants falling onto the web. The frame supports up to two scanning backscatter sensors and is available for web widths from 980 mm to 6230 mm.

Supported sensors

• Series 9 – Moisture & Coat Weight Gauge
• OptiMike – Optical Thickness Gauge
• GBS – Gamma Thickness Gauge
• Near-infrared (NIR) sensors
• X-ray sensors
• Gamma backscatter sensors

Applications and compatibility

• Single-side on-line measurement for coating weight, moisture, thickness and density control
• Integration with Nordson measurement systems and Series 9 family gauges
• Suitable for films, sheets, coated substrates and other continuous web processes

Key features

• Single-sided robust scanning frame with closed underside
• Sealing brush system around the head carriage to exclude particulates
• Supports both backscatter and reflection sensor families
• Up to two scanning backscatter sensors supported
• Configurable for web widths from 980 mm to 6230 mm

Technical specifications

• Model: MiniTrak™ S-Frame
• Type: Single-sided scanning frame for web measurement
• Sensor compatibility: NIR, optical thickness, X-ray, gamma backscatter; Series 9 family
• Maximum scanning backscatter sensors: up to 2
• Protection: sealing brush around head carriage; closed frame underside
• Supported web widths: 980 mm – 6230 mm (38.6 in – 245 in)
