2D scanner AccuTrak O-Frame

inspectionweblaser

Overview

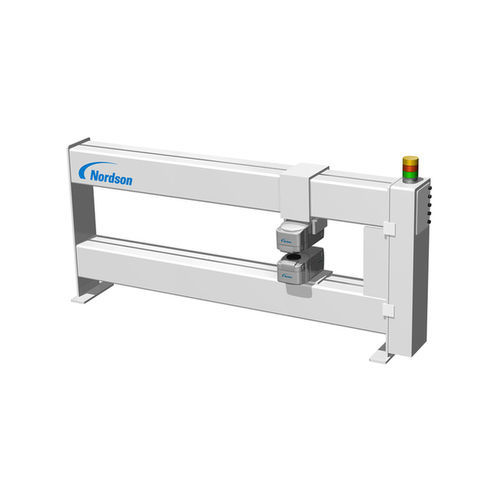

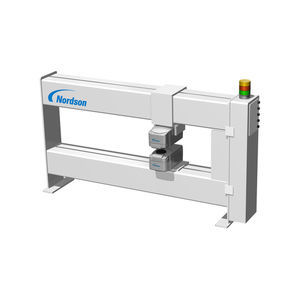

AccuTrak O-Frame is a wide-track O-Frame scanner for web sensor measurement (infrared, nuclear, X-ray and other web sensors). It supports up to 3 Nordson sensors and delivers fast profile acquisition with scanning speeds up to 500 mm/sec. The head angle accommodates pass lines between ±45° without tilting the scanner. Rugged box-beam construction and a head carriage bearing system ensure long-term precise and repeatable MD and CD measurements. Available for web widths from 600 mm to 10,000 mm.

Supported sensors

• FilmPro — infrared thickness gauge
• Series 9 — moisture & coat weight gauge
• GBS — gamma thickness gauge
• Photon — electrode / coat weight gauge

Key features

• O-Frame wide-track architecture for stable, repeatable measurements
• Support for up to 3 sensors for multi-point or multi-technology acquisition
• Maximum scanning speed: up to 500 mm/sec (20 in/sec)
• Head angle accommodation: ±45° pass lines without scanner tilt
• Rugged box-beam construction with advanced head carriage bearing system

Applications

• Inline profile acquisition for extrusion, laminating and converting
• Thickness and coat weight monitoring for films, sheets and coated webs
• Production-line quality control and continuous web inspection

Technical specifications

• Web width range: 600 mm – 10,000 mm (24 – 394 in)
• Scanning speed: up to 500 mm/sec (20 in/sec)
• Supported sensor types: infrared (IR), nuclear (gamma), X-ray, electrode/coat-weight and other web sensors
• Maximum simultaneous sensors: up to 3 (Nordson portfolio)
• Construction: box-beam O-Frame design
• Measurement repeatability: head carriage bearing system for precise MD and CD measurements
