Aluminum profile 10157
rectangularlightweightindustrial

aluminum profile
aluminum profile
aluminum profile
Add to favorites
Compare this product

Characteristics

Material
aluminum
Configuration
rectangular
Other characteristics
lightweight
Applications
industrial, construction, connecting, for machine frames and housings, for conveyor frames, for support fabrication
Width

10 mm (0.4 in)

Description

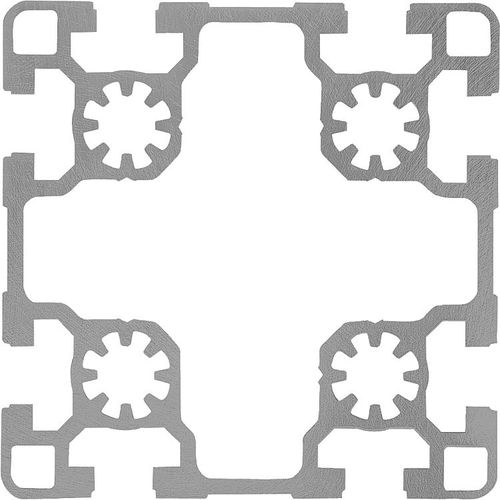

Aluminium profiles 90x90 light Type B Material: Aluminium EN AW-6063 T66 (AIMgSi 0.5 F25) Version: Artificially aged, natural colour anodized. Note: Lightweight aluminium profile for weight-optimised constructions. Surface: The aluminum profiles are natural anodized and therefore permanently scratchresistant and corrosion proof. The circumferential anodized coating makes the saw cut particularly low burr. Anodizing: E6EV1 Coating thickness: 10 μm Mechanical values: (apply only in the direction of pressing) Tensile strength Rm: min. 245 N/mm² Yield point Rp 0.2: min. 195 N/mm² A5: 10% rupture stress A10: 8% rupture stress Density: 2.7 kg/dm³ Linear expansion coefficient: 23.6x10-6 1/K Elasticity module E: approximately 70,000 N/mm² Hardness: approximately 75 HB -2.5/187.5
