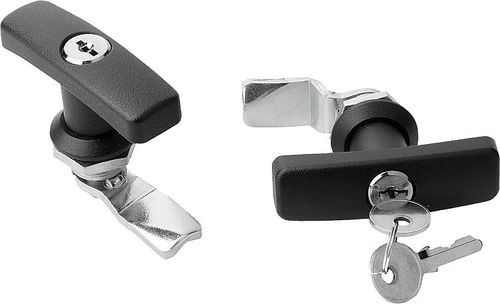

Quarter-turn locks with T-grip
Material:
Housing, actuator and nut die-cast zinc.
O-ring NBR, flat seal CR.
Tongue steel.
Version:
Housing chromed.
Actuator black powder-coated.
Nut and tongue galvanised.
Note:
Right or left mounting with 90° closing. The quarter-turn lock can be installed pre-assembled (limitations by a small A-dimension and thick doors). The fastening nut has claws allowing it to be used as an earthing nut.
Water and dust proof as per IP65 through the O-ring and flat seal.
The lockable quarter-turn locks are supplied with 2 keys. The key can be removed in both positions (open and closed). The cylinder locks have a single-key system, i.e. the same key works in all locks (lock type 101 or 1333).
Order required tongue version separately. Every tongue can be combined with every housing.
Accessory:
Lock key 05586
