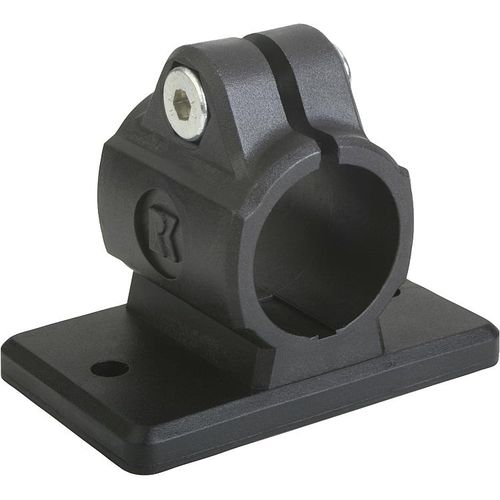

round tube connector / plastic / base piece / tube holder
base piece, tube holder, center bracket
Max.: 30 mm (1 in)
Min.: 18 mm (1 in)
Tube clamps flange, plastic
DIN 7984 screws and DIN 985 nuts steel.
Screws and nuts galvanized.
The standard size for round tubes is Ø18 mm or Ø30 mm. Use reducer sleeves 29042 if smaller tubes are to be clamped or a conversion from round to square tubes is required.
Plastic levers for locking.
- Reducer sleeves 29042
- Round and square tubes 29050
