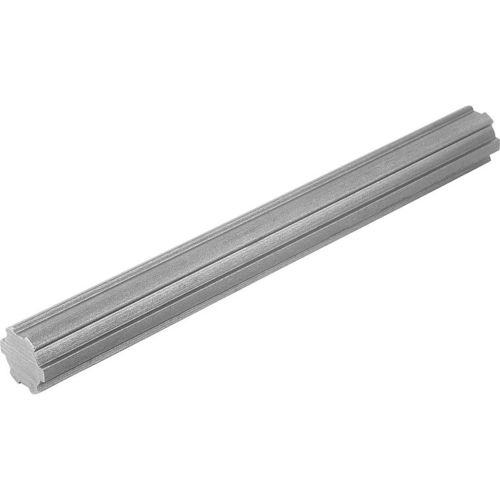

Steel shaft 24010
stainless steelsplinedtransmission

steel shaft
steel shaft
steel shaft
Add to favorites
Compare this product

Characteristics

Material
steel, stainless steel
Type
splined
Product applications
transmission
Diameter

Max.: 54 mm (2.13 in)

Min.: 14 mm (0.55 in)

Length

1,000 mm (39.37 in)

Description

Splined shafts similar to DIN ISO 14 Material: C45 steel or 1.4301 stainless steel. Version: Cold-drawn, bright. Note: Spline shafts based on DIN ISO 14 with straight parallel flanks. A spline shaft with spline hub is used to transmit high torques while enabling simultaneous axial movement. The spline shafts are cold-drawn. Cold drawing does not interrupt the grain flow of the base material, ensuring spline shafts of very high strength. Tolerances: Straightness 0.8 mm/m. Torsion max. 0.5 mm/m. On request: Other lengths.
