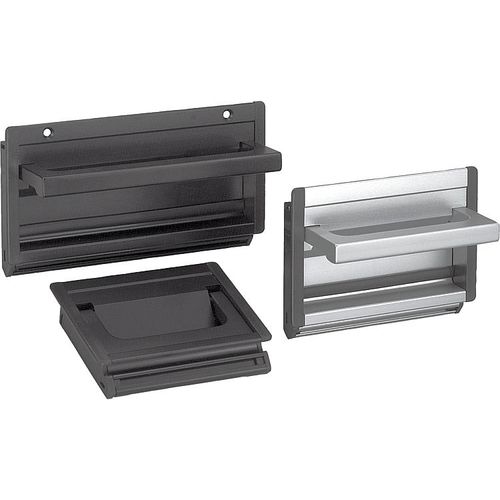

Recessed handle 06961
fold-downaluminumbuilt-in

recessed handle
recessed handle
recessed handle
Add to favorites
Compare this product

Characteristics

Type
fold-down
Material
aluminum
Other characteristics
built-in

Description

Recessed handles fold-down Description Material: Tray and grip aluminium profile. End caps polyamide. Form A: Rubber profile for mounting. Form B: 2 steel countersunk screws for mounting. Version: Tray and grip glass-bead blasted, satin finish and anodised black or natural colour. Rubber profile black. Fastening screws electro zinc-plated. Note: Form A handles can be mounted without screws for material thicknesses of 1 - 2.5 mm using 2 rubber profiles. Form B handles can be mounted from the front with 2 countersunk screws. Two cross-slots for M4 screws allow earthing connection and can serve as a mounting aid for additional parts. Assembly: After fitting the lower rubber profile, press the two side caps onto the handle. Next press the handle over the lower edge of the mounting cutout at a 45° angle and then push it up against the housing panel. Now push the 2nd rubber profile into the upper groove or fix in place with 2 countersunk screws.
