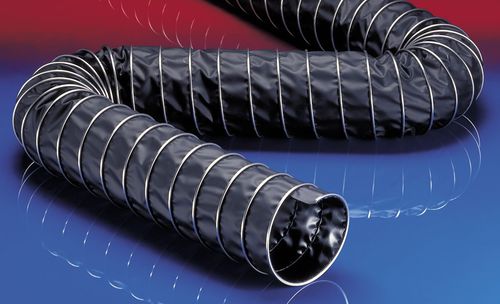

Gas hose CP HYP 450for dustfor powdersstainless steel
Add to favorites
Compare this product
Characteristics
- Use
- for gas, for powders, for dust
- Material
- stainless steel
- Applications
- for the chemical industry
- Other characteristics
- flexible, abrasion-resistant, chemical-resistant, oil-resistant, vibration-resistant, double-layer
- Inner diameter
Min.: 38 mm
(1.496 in)Max.: 1,000 mm
(39.37 in)- Outer diameter
Min.: 50 mm
(1.969 in)Max.: 1,012 mm
(39.843 in)- Pressure
Min.: 0.02 bar
(0.29 psi)Max.: 0.765 bar
(11.095 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 170 °C
(338 °F)- Delivered length
3 m, 6 m
(9'10" , 19'08" )
Description
industrial washing machine: air blower hose for drying
high temperature extraction: oven, foundry, furnace, smelting, ceramics industry, glass industry, steel plant, aluminium mill
bellows, compensators
PROPERTIES
secure clamping of the wall within the clamp profile
highly flexible + compressible 4:1
vibration resistant
very good heat resistance
good resistance to alkalis and acids
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: galvanised steel
2. wall: CSM coated polyester fabric
DELIVERY VARIANTS
further diameters and lengths available on request
