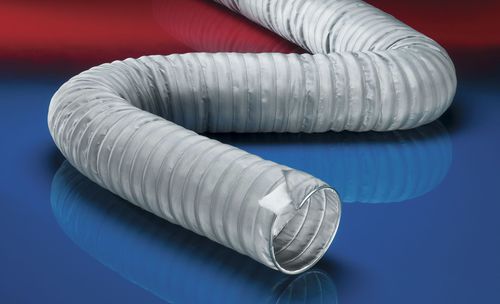

Gas hose CP HITEX 486high-temperatureexhaustfor the ceramics industry
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Applications
- high-temperature, exhaust, for the ceramics industry
- Other characteristics
- flexible, multilayer
- Inner diameter
Max.: 400 mm
(15.748 in)Min.: 100 mm
(3.937 in)- Outer diameter
Max.: 418 mm
(16.457 in)Min.: 118 mm
(4.646 in)- Pressure
Max.: 0.13 bar
(1.885 psi)Min.: 0.025 bar
(0.363 psi)- Temperature
Max.: 700 °C
(1,292 °F)Min.: -60 °C
(-76 °F)- Delivered length
3.6 m, 6 m
(11'09" , 19'08" )
Description
engine test bench, exhaust gas measurement
high temperature extraction: oven, foundry, furnace, smelting, ceramics industry, glass industry, steel plant, aluminium mill
bellows, compensators
PROPERTIES
very good resistance to flying sparks and welding sparks
secure clamping of the wall within the clamp profile
insulating
suitable for light overpressure
very good heat resistance
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: galvanised steel
2. multi-layer hose wall; wall: interior and exterior special coated glass fabric, thermo-insulation fabric
3. special thermal insulation layer
DELIVERY VARIANTS
further diameters and lengths available on request
stainless steel (INOX) clamp profile
