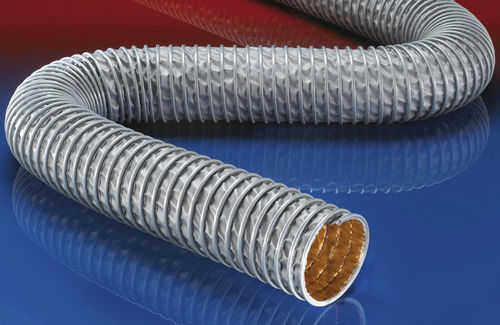

Gas hose CP KAPTON® 476
stainless steelhigh-temperaturefor chemical applications

Gas hose - CP KAPTON® 476 - NORRES Schlauchtechnik GmbH - stainless steel / high-temperature / for chemical applications
Gas hose - CP KAPTON® 476 - NORRES Schlauchtechnik GmbH - stainless steel / high-temperature / for chemical applications
Gas hose - CP KAPTON® 476 - NORRES Schlauchtechnik GmbH - stainless steel / high-temperature / for chemical applications - image - 2
Add to favorites
Compare this product

Characteristics

Use
for gas
Material
stainless steel
Applications
high-temperature, for chemical applications
Other characteristics
flexible, abrasion-resistant, chemical-resistant
Inner diameter

Max.: 500 mm
(19.685 in)

Min.: 50 mm
(1.969 in)

Outer diameter

Max.: 512 mm
(20.157 in)

Min.: 62 mm
(2.441 in)

Pressure

Max.: 0.52 bar
(7.542 psi)

Min.: 0.04 bar
(0.58 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -60 °C
(-76 °F)

Delivered length

6 m
(19'08" )

Description

vehicle gas exhaust system, car gas extraction: hose reel, slotted floor channel, underfloor extraction system engine test bench, exhaust gas measurement bellows, compensators PROPERTIES abrasion protection via external clamp profile secure clamping of the wall within the clamp profile highly flexible + compressible 4:1 very good heat resistance good resistance to alkalis and acids extremely good resistance to chemicals conforms to RoHS guideline REACH according to --> Technology / Technical Information / REACH DESIGN CP construction 1. clamp profile supporting spiral: galvanised steel 2. Wall: Kapton® laminated glass fabric DELIVERY VARIANTS further diameters and lengths available on request
