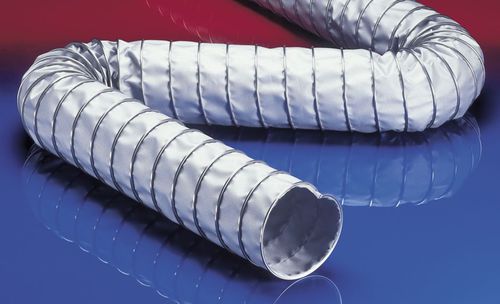

Gas hose CP HITEX 480stainless steelhigh-temperaturefor the ceramics industry
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- stainless steel
- Applications
- high-temperature, for the ceramics industry
- Other characteristics
- flexible, abrasion-resistant
- Inner diameter
Max.: 1,016 mm
(40 in)Min.: 38 mm
(1.496 in)- Outer diameter
Max.: 1,028 mm
(40.472 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 0.45 bar
(6.527 psi)Min.: 0.001 bar
(0.015 psi)- Temperature
Max.: 450 °C
(842 °F)Min.: -60 °C
(-76 °F)- Delivered length
6 m
(19'08" )
Description
high temperature extraction: oven, foundry, furnace, smelting, ceramics industry, glass industry, steel plant, aluminium mill
infrared heating systems, gas-fired radiant tube heater: hot air tube
PROPERTIES
very good resistance to flying sparks and welding sparks
secure clamping of the wall within the clamp profile
highly flexible + compressible 3:1
very good heat resistance
flame-retardant according to: DIN 4102-B1
conforms to RoHS guideline
REACH according to --> Technology / Technical Information / REACH
DESIGN
CP construction
1. clamp profile supporting spiral: galvanised steel
2. wall: stainless steel wire reinforced and special coated glass fabric
DELIVERY VARIANTS
further diameters and lengths available on request
stainless steel (INOX) clamp profile
