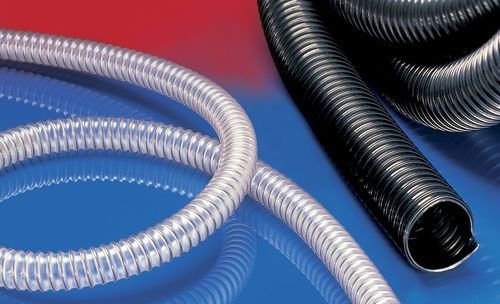

Gas hose AIRDUC® PUR 355 HT (HD)
for powderslow-temperatureheavy-duty

gas hose
gas hose
gas hose
gas hose
Add to favorites
Compare this product


Characteristics

Use
for gas, for powders
Applications
heavy-duty, low-temperature, for the plastics industry, for the textile industry
Norms
DIN
Other characteristics
flexible, abrasion-resistant, chemical-resistant, oil-resistant
Inner diameter

Min.: 25 mm
(0.984 in)

Max.: 203 mm
(7.992 in)

Outer diameter

Min.: 32 mm
(1.26 in)

Max.: 213 mm
(8.386 in)

Pressure

Min.: 1.115 bar
(16.172 psi)

Max.: 3.375 bar
(48.95 psi)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Delivered length

10 m
(32'09" )

Description

film blowing machine, cooling air at the extrusion tool offset printing machine: air supply, air supply cabinet textile industry, steam soaking: steam iron, industrial ironing machine, smoothing iron raw material conveying hose for powders, granulates, sand, quartz, gravel, shards and chips/ shavings compressor, side channel blower, vacuum pump, pressure pump, pump PROPERTIES very good heat resistance (better than comparable TPE and Neoprene) increased pressure and vacuum resistance according to DIN 26057 Type 3 REACH according to --> Technology / Technical Information / REACH DESIGN AIRDUC® profile hose 1. spring steel wire firmly embedded in wall 2. wall: patented special premium high-temperature polyurethane HT-PUR (Pre-PUR®) 3. wall thickness 1,4 - 1,5 mm approx. DELIVERY VARIANTS further diameters and lengths available on request transparent (standard) customer-specific branding black (standard)
