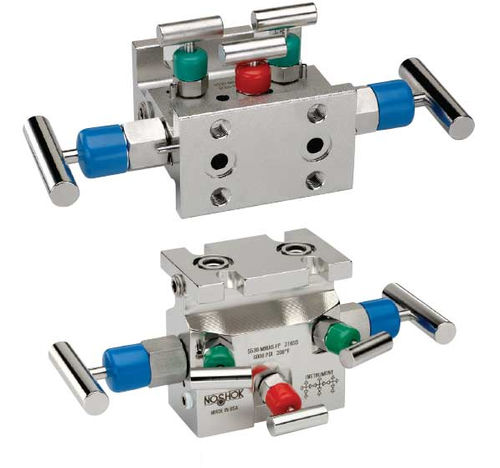

5-way manifold 5530

stainless steelisolationflange

Designed for use with differential pressure transmitters incorporating two isolation valves, two equalizing valves and a vent valve in natural gas applications Flare Pattern™ valve configuration provides maximum clearance for fingers during operation Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and aback-up metal-to-metal seal (U.S. Patent 6,820,857) Non-rotating stem tip standard on large bore shut-off valves Available in block, single flange, or double flange connection for remote or direct installation 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability Soft seat design has 6,000 psi pressure rating @ 200 °F Features a replaceable Delrin® seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning on the block valves Blow-out proof stem provides a secondary stem seal in the full open position FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling All stems are 316 Stainless Steel All stem threads are rolled for strength and ease of operation One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads Slotted spring pin to prevent accidental loosening Vinyl dust caps for bonnets and stems Non-rotating stem tip standard on isolation valves
