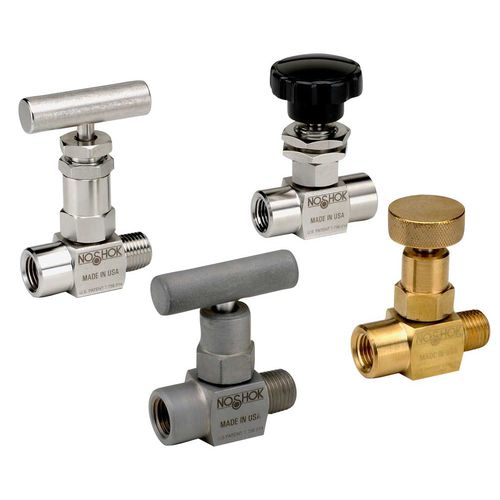

Needle valve 100

manualshut-offfor oil

Compact size valve built for maximum durability and robust performance in the toughest applications 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability Hard seat valves have a maximum pressure of 10,000 psi for Stainless Steel and Steel models; 6,000 psi for Brass Available in Zinc-nickel plated Steel, electropolished Stainless Steel and Brass FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional All stems are 316 Stainless Steel All stem threads are rolled for strength and ease of operation Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014) Materials - Zinc-nickel plated steel, electropolished 316 Stainless Steel, 360 Brass Connections - 1/8" NPT, 1/4" NPT, 7/16"-20 UNF-2B, 9/16"-18 UNF-2B Male-male, Male-female, Female-female, in-line and angled configurations Pressure ratings* - Brass: 6,000 psi @ 200 °F Steel: 10,000 psi @ 200 °F Stainless Steel: 10,000 psi @ 200 °F
