Chemical pump 2000 series

slurrygearstationary

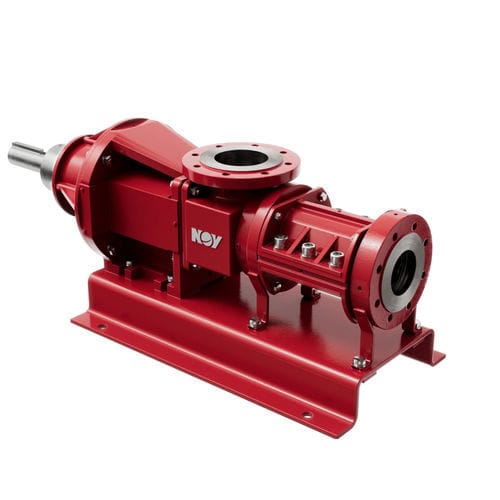

2000 pumps set the standard in positive displacement pumping applications. The proprietary 2000 gear-type universal joint design effectively handles radial and thrust loads for maximum performance and long life. These rugged pumps are able to handle abrasive materials in excess of 80% solids and offer a performance range to 4,500 GPM with pressure to 1,500 PSI. The 2000WA close coupled pump is specifically designed for lower pressure, lower flow applications that do not require the full features and benefits of the 2000G1 pump. The 2000WA features a close coupled design that has integral bearings that support the radial thrust loads that can be seen at the rotor/stator. This design reduces the overall stress that can occur in the gear reducer. The 2000WA is specifically designed for applications that require the transfer of highly viscous fluids and solids where a close coupled configuration is preferred, but the robustness of a gear joint is desired. The 2000WB close coupled pump is specifically designed for lower pressure, lower flow applications that do not require the full features and benefits of the 2000G1 pump. The 2000WB model features a traditional close coupled design where the loads are supported by the gear reducer bearings. This design reduces the overall stress that can occur in the gear reducer. The 2000WB is specifically designed for applications that require the transfer of highly viscous fluids and solids where a close coupled configuration is preferred, but the robustness of a gear joint is desired.
