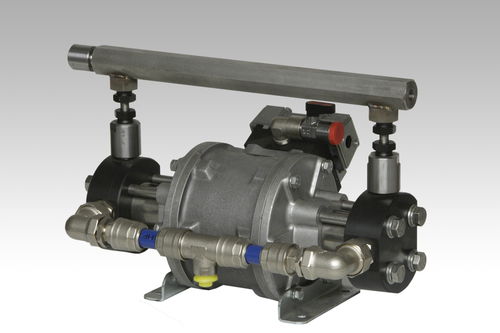

Hydraulic piston pump P825 series
air-drivendouble-acting

hydraulic piston pump
hydraulic piston pump
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
air-driven
Other characteristics
double-acting
Pressure

Max.: 1,855 bar
(26,905 psi)

Min.: 110 bar
(1,595 psi)

Description

The P825 model, engineered by Olmec, is a pneumohydraulic pump, suitable in high-pressure circuits for pressurization, resistance and material deformation tests. This machine is equipped with a pneumatic motor that consists of head to head pumping cartridges, providing a double acting performance. It is also capable of attaining a delivery pressure from 10 to 1855 bar and delivery rates up to 22 liters per minute, due to its 8 intensification ratios for the standard versions. This pneumohydraulic pump is built with a unique construction concept that features the utilization of metal seals, to guarantee the safety and enhanced working life of the device.
