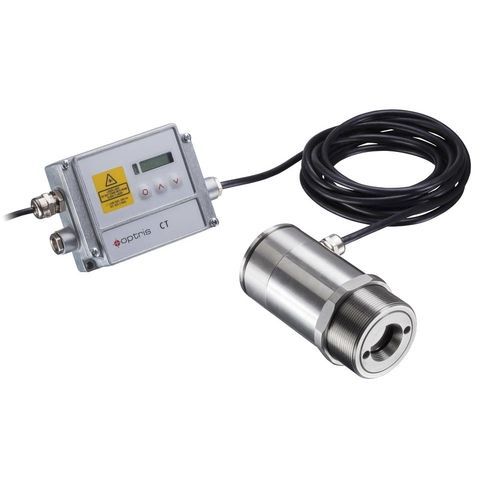

Infrared thermometer CTlaser 4ML

digital30:1analog output

The Optris CT 4M pyrometer stands out as a high-speed temperature measurement device designed for operating within a range of 0 °C to 500 °C. These pyrometers unique mid-wavelength spectrum, spanning from 2.2 µm to 6 μm, enables precise measurements across various materials, addressing challenges commonly faced with LT sensors operating in the long-wavelength infrared spectral range. At the core of the CT 4M is an InAsSb detector, offering an optical resolution of 30:1, ensuring accurate readings for temperature monitoring applications even from considerable distances. With a rapid exposure time of 90 μs, it excels in high-speed operations where quick and reliable temperature readings are crucial. A notable feature of the CT 4M series is its double laser aiming system, precisely marking the actual spot location and enhancing aiming certainty in temperature monitoring. Unlike single laser systems in conventional IR thermometers, the double laser sighting system of the CT 4M series indicates the size of the measurement spot and provides a system accuracy of ± 0.3% of reading or ±2 °C and repeatability of just 0.1 % of reading or ±1 °C demonstrate high measurement performance. The CT 4M pyrometer offers a wide array of output options, including analog and digital outputs such as 0/4 – 20 mA, 0 – 5 V, 0 – 10 V, USB, Ethernet, RS485, RS232 interface, relay outputs, Profibus DP, Modbus TCP, ProfiNet, and Ethernet/IP. This versatility ensures seamless integration into various industrial processes and monitoring systems, enhancing the infrared pyrometers utility across diverse applications.
