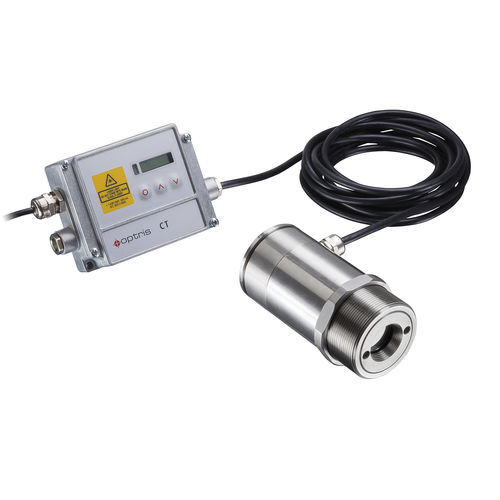

Infrared thermometer CTlaser F2

digital°C45:1

The CTlaser F2 offers precision non-contact temperature measurement of carbon dioxide flame gases, reaching temperatures up to 1650 °C. This precision is crucial for combustion processes, garbage burning, and operations within chemical reactors, instilling confidence in the pyrometers performance. Gas molecules emit infrared energy at specific wavelengths, forming absorption bands in the infrared spectrum. Infrared thermometers are equipped with filters that select wavelengths based on the absorption bands of targeted gases, determining the spectral range. The CTlaser F2’s spectral range of 4.24 μm enables accurate carbon dioxide temperature readings, with temperature ranges varying from: 200 °C to 1450 °C for the F2 model and 400 °C to 1650 °C for the F2H model. The CTlaser F2 features a system accuracy of ±1% and repeatability of ±0.5% or +0.5 °C at an ambient temperature of 23 ±5 °C. With a spot size starting from 1.6 mm and optics of 45:1 with different focus points, the infrared sensor ensures accuracy and flexibility in various settings. The pyrometers’ double laser aiming marks offer precise aiming support and minimize alignment errors. This innovative system employs two laser beams to trace the infrared optical path and accurately indicate the spot’s position and size, regardless of distance. The pyrometer features a two-piece design with a separate electronics box, providing a diverse array of analog and digital outputs for seamless integration into various industrial processes and control systems. It remains operational in ambient temperatures up to 85 °C without requiring cooling
