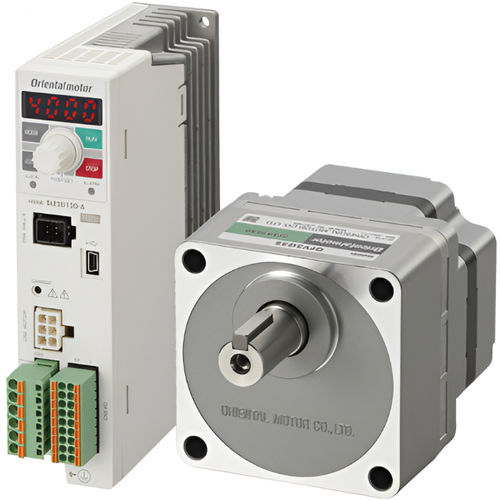

Integrated-drive motor BLE2 seriesbrushlesssingle-phase220 V
Add to favorites
Compare this product
Characteristics
- Type
- brushless, single-phase
- Voltage
- 220 V
- Configuration
- stainless steel, compact
- Protection class
- IP44, IP66, IP67, IP20
- Applications
- for medical applications, for industrial applications, for pump, for medical equipment, for conveyors, for machine tools, packaging machine, for the chemical industry, for automatic doors, for agribusiness, centrifuge
- Other characteristics
- variable-speed, integrated-drive, with speed controller
- Power
Min.: 30 W
(0.04 hp)Max.: 300 W
(0.41 hp)- Torque
Min.: 0.2 Nm
(0.147512 ft.lb)Max.: 583 Nm
(429.998733 ft.lb)- Rotational speed
Min.: 80 rpm
(502.6548 rad.min-1)Max.: 4,000 rpm
(25,132.7412 rad.min-1)- Diameter
60 mm, 80 mm, 90 mm, 110 mm
(2.36 in, 3.15 in, 3.54 in, 4.33 in)
Description
Brushless DC Motor
Features
30-300 W/80-4000 r/min
16 programmable speeds
Digital setting/display
Vertical movement possible
Load factor display
Torque limitation
Up to IP67
Rated power: 30 - 300 W
Speed with gearbox: 0.067 - 800 rpm
Max. permissible torque: 0.2 - 583 Nm
Options: Spur gear, hollow shaft gear, gear with foot, electromechanical brake
