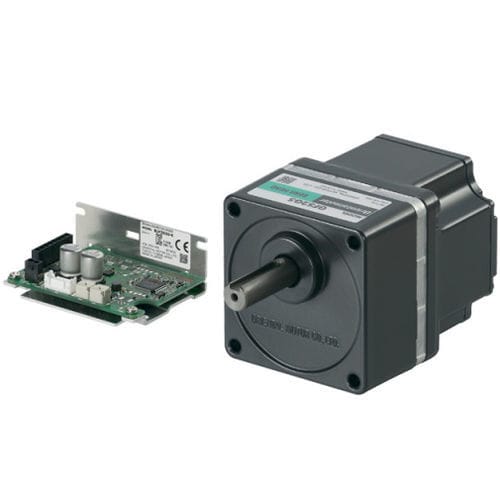

Brushless DC gear-motor BLH seriesplanetaryparallel-shaftsolid-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- planetary
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W, 50 W...100 W
- Voltage
- 24 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 50 - 100 Nm
- Performance
- high-performance
- Other characteristics
- compact, IP65
- Gear ratio
Max.: 200 unit
Min.: 5 unit
Description
Brushless DC motor with driver for 24 VDC
Features
Motor protection class up to IP65
Compact driver board
High speed stability
Energy-saving
High torque at low speeds
Torque limitation
Rated power: 15 - 100 W
Speed range with gearbox: 0.4 - 600 rpm
Max. permissible torque: 0.07 - 68 Nm
Options: Spur gear, hollow shaft flat gear, electromagnetic brake
