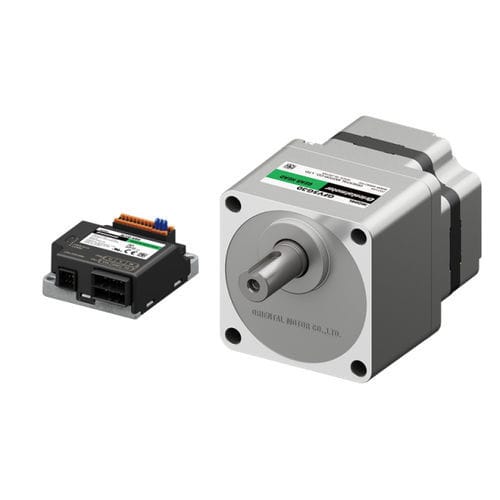

Gear-motor with integrated controller BLV-R Seriesbrushless DCplanetaryparallel-shaft
Add to favorites
Compare this product
Characteristics
- Motor type
- brushless DC
- Type
- planetary
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Voltage
- 24 V, 48 V
- Torque
- 1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm, 20 - 50 Nm, 0.5 - 1 Nm, 50 - 100 Nm
- Performance
- high-power
- Other characteristics
- compact, with integrated controller, CANopen
- Gear ratio
Min.: 5 unit
Max.: 200 unit
Description
BLV-R series
Brushless DC Motor
Features
60 W, 100 W, 200 W, 400 W/1-4000 r/min
Modbus (RTU), CANopen
Compact and lightweight
Positioning mode
Brake type available
Rated power: 60 - 400 W
Speed range with gearbox: 0.005 - 800 rpm
Max. permissible torque: 0.41 - 108 Nm
Options: Spur gear, hollow shaft flat gear, electromagnetic brake
Catalogs
Brushless Motors BLV-R Series
44 Pages
