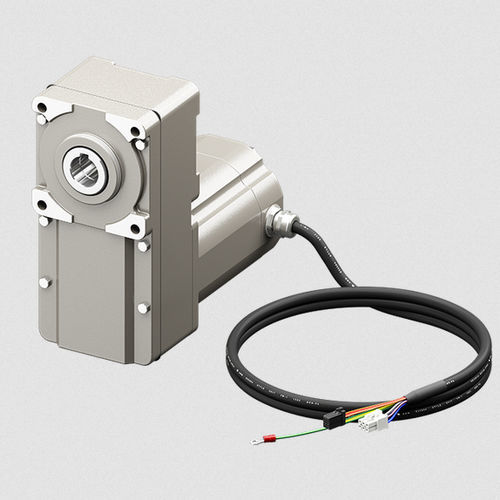

Stainless steel motor

brushlesssingle-phasethree-phase

Degree of Protection IP67, IP69K. Made of Stainless Steel for Excellent Corrosion Resistance. Compact, Lightweight, High-Efficiency (IE5 Equivalent) Brushless Motor. Degree of Protection IP67, IP69K. Excellent Dustproof and Waterproof Performance, Can Withstand Cleaning at High Temperatures and High Pressures. This motor has excellent dustproof and waterproof performance, having passed 2 degree of protection tests, IP67 and IP69K, and can withstand high temperature and high pressure cleaning. It is suitable for use in environments where equipment used in food factories etc. is installed, where water is present, or where cleaning is required during changeovers. Dustproof: IP Rating 6 - Completely dustproof structure, Completely protected against dust ingress. Watertight: IP Rating 7 - Usable even when submerged under the following conditions, Immersion to a depth of 1 m for 30 minutes. IP Rating 9K - Protected against powerful water jets at high temperatures and pressures, High pressure (8~10 MPa) and high temperature (80 °C) water jets from close range. "IP67" The IP rating, which indicates dustproof and waterproof performance, is specified in IEC 60529 and IEC 60034-5. IPX9K is specified in DIN 40 050-9. Made of Stainless Steel for Excellent Corrosion Resistance. Stainless steel material equivalent to SUS304 is used for superior corrosion resistance. Since it is not painted, there will be no peeling of the paint. Compact, Lightweight, High-Efficiency (IE5 Equivalent) Brushless Motor. Compact and Lightweight: Smaller and more lightweight compared to AC motors with the same output power. High Efficiency Equivalent to IE5, Low Heat Generation: High efficiency motor with motor efficiency of 80 % (IE5 equivalent*). Running costs can be reduced due to higher efficiency compared to IE3 equivalent stainless steel type AC motors. In addition, the motor that low heat generation because highly efficient. *The "IE5 efficiency standard" is 76.2 %. Efficiency standard value (%) for speed control motors (rated speed 1801-6000 r/min) based on IEC TS 60034-30-2. System Configuration: Combined With Oriental Motor BLE2 Series Drivers. The distance between the motor and driver can be extended up to 20 m. Oriental Motor provides the cables connecting the motor and driver. BLE2 Series driver is used. (For stainless steel type only). Combination With Inverter: Combinable inverters are inverters that can be combined with PM motors. The cable between the motor and inverter must be provided by the customer. Product Line: Motor. Output Shaft Type: Hollow Shaft Flat Gearhead. Output Power [W]: 200. Frame Size [mm]: 104 mm (Gearhead section is 110 mm). Gear Ratio: 10, 15, 20, 30, 50. Mass [kg]: 13.5. IP Classification: IP67*1, IP69K*2. *1 The IP indication that shows the watertight and dust-resistant performance are specified under IEC 60529 and IEC 60034-5. Excluding connectors for driver connection. *2 IPX9K is specified in DIN 40 050-9. Excluding connectors for mounting surface, cable, and driver connection. Driver (BLE2 Series driver for stainless steel type motor). Output Power [W]: 200. Voltage [V]: Single-phase 100-120 VAC/ Single-phase, Three-phase 200-240 VAC. Mass [kg]: 10, 15, 20, 30, 50. IP Classification: IP20. Connection Cable: Connection Cable Between Motor and Driver. Connection cable/Flexible connection cable. Max. 20 m. Technical Specifications / Features: Degree of Protection: IP67, IP69K. Material: Stainless steel (SUS304 equivalent). Output Power: 200 W. Frame Size: 104 mm (Gearhead section 110 mm). Gear Ratios: 10, 15, 20, 30, 50. Mass: 13.5 kg. High efficiency: 80% (IE5 equivalent). Compatible Driver: BLE2 Series. Driver Voltage: Single-phase 100-120 VAC / Single-phase, Three-phase 200-240 VAC. Driver IP Classification: IP20. Connection cable max length: 20 m.
