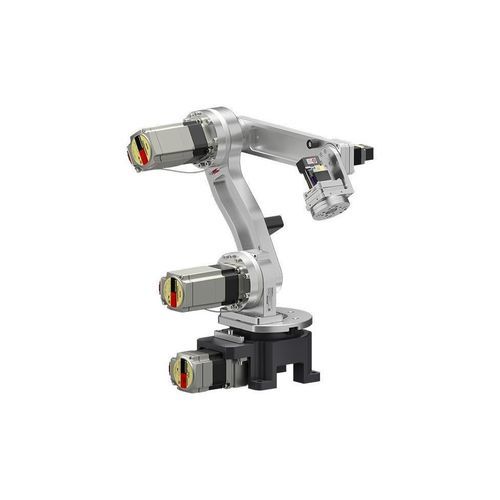

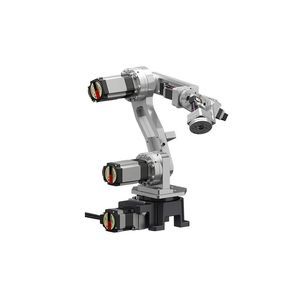

Articulated robot OVR5048K1-V

5-axistransferpick-and-place

Overview

• Maximum reach (Horizontal): 480 mm
• Payload: 1 kg
• DC input
• Compact and lightweight, enabling horizontal movement in combination with electric linear slides

Compact and Lightweight
Body mass: 11.5 kg. Footprint: 130 × 130 mm. The compact, lightweight design simplifies transport and installation and allows combination with electric linear slides to extend horizontal reach for multi-process handling and long-distance transport.

Mounting Options
Supports both ceiling and floor/stand mounting. Ceiling mounting frees workspace beneath the robot and increases layout flexibility.

User-Maintainable
Multi-axis mechanical units include motors and sensors that can be replaced by the customer to minimize downtime. The design allows in-house replacement of drive units such as motors and hollow rotary actuators.

Motors and Encoders
All axes use αSTEP AZ Series motors equipped with battery-free multi-rotation absolute encoders, eliminating periodic battery replacement and reducing the risk of losing position information.

Controller and Integration
The integrated robot controller supports EtherNet/IP™ for direct control from a PLC/IPC and also supports standalone I/O configurations. DC input simplifies power wiring and provides flexibility for production line installations and layout changes.

Configuration example
Robot | OVR5048K1-V | 1
Integrated Robot Controller & Drivers | MRCU5AK | 1
Connection Cable (3 m) | CCM030Z1EFF | 1
Connection Cable (3 m) | CCM030Z1EFR | 2
Connection Cable (3 m) | CCM030Z2AAR | 2
Power Supply Cable | CC09MRCU030 | 1

Programming and Software
MRC Studio programming software provides wizard-based setup and icon-driven operation so users without robot programming experience can start quickly.

• Operation Programs: Up to 64 can be created
• Commands: Up to 128 per program
• Program Execution: EtherNet/IP or input signal

Programming Flow (basic)

• STEP 1: Determine the Position — Move the robot using X, Y, Z controls and register the desired position
• STEP 2: Choose How to Move — Select speed and movement type between points
• STEP 3: Check the Operation — Verify the operation program immediately in test mode

Simulation and Validation
MRC Studio Simulator enables simulation of actual movements without the physical robot or controller; programs created with the simulator can be reused during installation. MRC Reality enables virtual setup in real space to verify arm motion, installation footprint, and required operating space before installation.

Related Products / Use Cases
Examples include electric lifting columns and electric grippers designed to interface with the robot system to expand operating range or tooling options.

Technical specifications

• Model: OVR5048K1-V
• Maximum reach (Horizontal): 480 mm
• Payload: 1 kg
• Input: DC
• Body mass: 11.5 kg
• Footprint: 130 × 130 mm
• Mounting: Ceiling and floor/stand mount supported
• Motors: αSTEP AZ Series (battery-free multi-rotation absolute encoder)
• Controller example: MRCU5AK (integrated robot controller & drivers)
• Typical connection cables: CCM030Z1EFF, CCM030Z1EFR, CCM030Z2AAR
• Power supply cable example: CC09MRCU030
