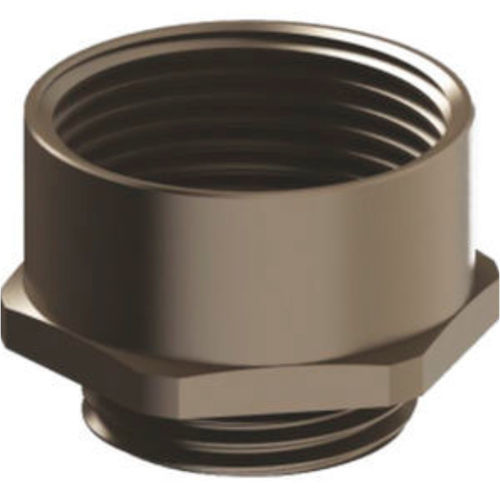

Cable gland accessory M12AP7

Product name
Thread Adapter Metric-PG / PG-Metric

Product details
Adapter: Nickel plated brass
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP68
Properties: Adapter from metric outer thread to PG inner thread
Enables use of PG accessories in metric threaded applications

Technical Data - Metric to PG (Metric -> PG)
AG Thread | Product Code | IG mm | GL mm | Wrench mm
M 12 x 1,5 | M12AP7 | PG 7 | 6 | 14
M 12 x 1,5 | M12AP9 | PG 9 | 6 | 17
M 16 x 1,5 | M16AP11 | PG 11 | 6 | 21
M 20 x 1,5 | M20AP11 | PG 11 | 6 | 22
M 20 x 1,5 | M20AP13,5 | PG 13,5 | 6 | 23
M 25 x 1,5 | M25AP16 | PG 16 | 7 | 27
M 25 x 1,5 | M25AP21 | PG 21 | 7 | 32
M 32 x 1,5 | M32AP29 | PG 29 | 8 | 42
M 40 x 1,5 | M40AP29 | PG 29 | 8 | 45
M 50 x 1,5 | M50AP36 | PG 36 |10 | 55
M 50 x 1,5 | M50AP42 | PG 42 |10 | 60
M 63 x 1,5 | M63AP48 | PG 48 |10 | 65

Technical Data - PG to Metric (PG -> Metric)
AG Thread | Product Code | IG mm | GL mm | Wrench mm
PG 7 | P7AM12 | M 12 x 1,5 | 6 | 14
PG 9 | P9AM16 | M 16 x 1,5 | 6 | 19
PG 11 | P11AM16 | M 16 x 1,5 | 6 | 21
PG 13,5| P13,5AM20| M 20 x 1,5 | 6 | 23
PG 16 | P16AM20 | M 20 x 1,5 | 7 | 25
PG 16 | P16AM25 | M 25 x 1,5 | 7 | 28
PG 21 | P21AM25 | M 25 x 1,5 | 7 | 30
PG 21 | P21AM32 | M 32 x 1,5 | 7 | 35
PG 29 | P29AM40 | M 40 x 1,5 | 8 | 45
PG 36 | P36AM50 | M 50 x 1,5 | 9 | 55
PG 42 | P42AM63 | M 63 x 1,5 |10 | 70

Features / Technical specifications

• Material: Nickel plated brass (adapter)
• O-ring material: NBR
• Applicable threads: Metric (EN60423) and PG (DIN 40430)
• Ingress protection: IP68
• Function: Converts metric outer thread to PG inner thread and allows use of PG accessories in metric threaded applications
• Available sizes/codes: see technical data tables above (examples: M12AP7, M16AP11, M25AP16, P7AM12, P16AM20, P29AM40, etc.)
• Wrench sizes and thread dimensions provided per product code in technical tables
