Metal locknut OMBL 01

hexagonalthreadedfitting

Overview

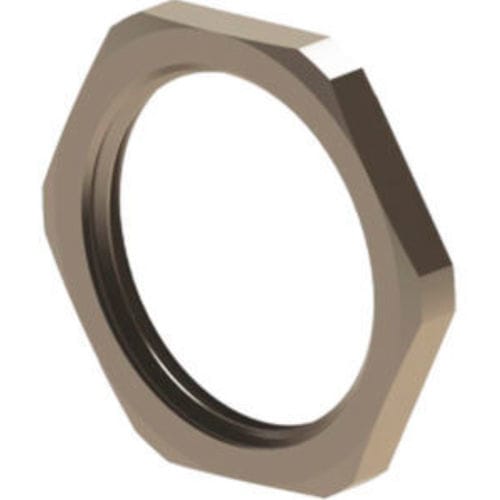

Hexagonal locknut in nickel-plated brass designed for tightening cable glands. Compatible with metric (EN60423) and PG (DIN 40430) thread systems. Supplied in a range of sizes with specified heights (H) and wrench sizes to fit common cable gland installations.

Technical data (metric thread table)

• M12 x 1.5 | Code: OMBL 01 | H: 2.8 mm | Wrench: 15 mm
• M16 x 1.5 | Code: OMBL 02 | H: 3.0 mm | Wrench: 19 mm
• M20 x 1.5 | Code: OMBL 03 | H: 3.5 mm | Wrench: 24 mm
• M25 x 1.5 | Code: OMBL 04 | H: 3.5 mm | Wrench: 30 mm
• M32 x 1.5 | Code: OMBL 05 | H: 4.0 mm | Wrench: 36 mm
• M40 x 1.5 | Code: OMBL 06 | H: 4.0 mm | Wrench: 45 mm
• M50 x 1.5 | Code: OMBL 07 | H: 5.0 mm | Wrench: 55 mm
• M63 x 1.5 | Code: OMBL 08 | H: 5.0 mm | Wrench: 68 mm
• M70 x 2.0 | Code: OMBL 09 - 70 | H: 7.0 mm | Wrench: 80 mm
• M72 x 1.5 | Code: OMBL 09 - 72 | H: 7.0 mm | Wrench: 85 mm
• M72 x 2.0 | Code: OMBL 09 - 72 -2 | H: 7.0 mm | Wrench: 85 mm
• M75 x 1.5 | Code: OMBL 09 | H: 7.0 mm | Wrench: 90 mm
• M80 x 2.0 | Code: OMBL 09 - 80 | H: 7.0 mm | Wrench: 90 mm
• M90 x 2.0 | Code: OMBL 10 | H: 10.0 mm | Wrench: 100 mm

Technical data (PG thread table)

• PG7 | OPBL 01 | H: 2.8 mm | Wrench: 15 mm
• PG9 | OPBL 02 | H: 2.8 mm | Wrench: 18 mm
• PG11 | OPBL 03 | H: 3.0 mm | Wrench: 21 mm
• PG13.5 | OPBL 04 | H: 3.0 mm | Wrench: 23 mm
• PG16 | OPBL 05 | H: 3.0 mm | Wrench: 26 mm
• PG21 | OPBL 06 | H: 3.5 mm | Wrench: 32 mm
• PG29 | OPBL 07 | H: 4.0 mm | Wrench: 40 mm
• PG36 | OPBL 08 | H: 5.0 mm | Wrench: 50 mm
• PG42 | OPBL 09 | H: 5.0 mm | Wrench: 60 mm
• PG48 | OPBL 10 | H: 5.5 mm | Wrench: 64 mm

Characteristics / Technical specifications

• Material: Nickel-plated brass
• Shape: Hexagonal locknut
• Connection thread types: Metric (EN60423) and PG (DIN 40430)
• Primary use: For tightening of cable glands
• Available metric sizes and codes: M12x1.5 (OMBL 01), M16x1.5 (OMBL 02), M20x1.5 (OMBL 03), M25x1.5 (OMBL 04), M32x1.5 (OMBL 05), M40x1.5 (OMBL 06), M50x1.5 (OMBL 07), M63x1.5 (OMBL 08), M70x2.0 (OMBL 09 - 70), M72x1.5 (OMBL 09 - 72), M72x2.0 (OMBL 09 - 72 -2), M75x1.5 (OMBL 09), M80x2.0 (OMBL 09 - 80), M90x2.0 (OMBL 10)
• Available PG sizes and codes: PG7 (OPBL 01), PG9 (OPBL 02), PG11 (OPBL 03), PG13.5 (OPBL 04), PG16 (OPBL 05), PG21 (OPBL 06), PG29 (OPBL 07), PG36 (OPBL 08), PG42 (OPBL 09), PG48 (OPBL 10)
• Dimensions provided: H (height) and wrench size (mm) per code as listed above
