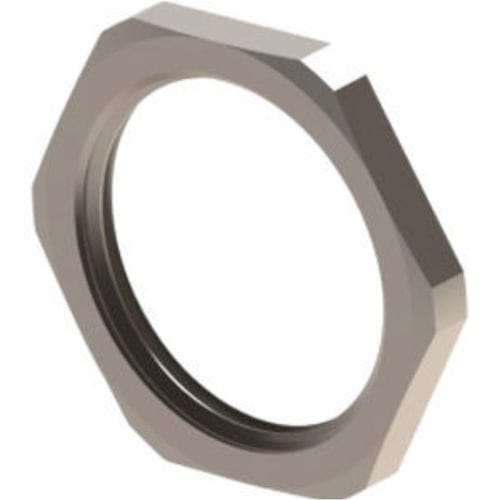

Stainless steel locknut OMSL 01

hexagonalstainless steel 316Lcable gland

Product
Hexagonal stainless steel locknuts for tightening cable glands in industrial enclosures and equipment. Available in AISI303 and AISI316L. Compatible with Metric (EN60423) and PG (DIN 40430) thread standards; manufactured under codes OMSL (Metric) and OPSL (PG).

Details
Hexagonal locknut: Stainless steel AISI303 / AISI316L
Connection thread: Metric (EN60423) / PG (DIN 40430)
Intended use: Tightening cable glands on panels, junction boxes and control cabinets in industrial applications.

Technical Data - Metric / PG thread lock nuts (selection)
M12 x 1.5 - Code: OMSL 01 - H mm: 2.8 - Wrench mm: 15
M16 x 1.5 - Code: OMSL 02 - H mm: 3.0 - Wrench mm: 19
M20 x 1.5 - Code: OMSL 03 - H mm: 3.5 - Wrench mm: 24
M25 x 1.5 - Code: OMSL 04 - H mm: 3.5 - Wrench mm: 30
M32 x 1.5 - Code: OMSL 05 - H mm: 4.0 - Wrench mm: 36
M40 x 1.5 - Code: OMSL 06 - H mm: 4.0 - Wrench mm: 46
M50 x 1.5 - Code: OMSL 07 - H mm: 5.0 - Wrench mm: 55
M63 x 1.5 - Code: OMSL 08 - H mm: 5.0 - Wrench mm: 70
M70 x 2.0 - Code: OMSL 09-70 - H mm: 7.0 - Wrench mm: 80
M72 x 1.5 - Code: OMSL 09-72 - H mm: 7.0 - Wrench mm: 85
M72 x 2.0 - Code: OMSL09-72-2 - H mm: 7.0 - Wrench mm: 85
M75 x 1.5 - Code: OMSL 09 - H mm: 7.0 - Wrench mm: 90
M80 x 2.0 - Code: OMSL 09-80 - H mm: 7.0 - Wrench mm: 90
M80 x 2.0 - Code: OMSL 10 - H mm: 10.0 - Wrench mm: 100

PG sizes:
PG7 - Code: OPSL 01 - H mm: 2.8 - Wrench mm: 15
PG9 - Code: OPSL 02 - H mm: 2.8 - Wrench mm: 18
PG11 - Code: OPSL 03 - H mm: 3.0 - Wrench mm: 22
PG13.5 - Code: OPSL 04 - H mm: 3.0 - Wrench mm: 24
PG16 - Code: OPSL 05 - H mm: 3.0 - Wrench mm: 27
PG21 - Code: OPSL 06 - H mm: 3.5 - Wrench mm: 32
PG29 - Code: OPSL 07 - H mm: 4.0 - Wrench mm: 41
PG36 - Code: OPSL 08 - H mm: 5.0 - Wrench mm: 50
PG42 - Code: OPSL 09 - H mm: 5.0 - Wrench mm: 60
PG48 - Code: OPSL 10 - H mm: 5.5 - Wrench mm: 65

Specifications / technical characteristics

• Material: Stainless steel AISI303 / AISI316L
• Type: Hexagonal locknut
• Intended use: For tightening of cable glands
• Connection thread standards: Metric (EN60423) and PG (DIN 40430)
• Available Metric sizes and codes: M12x1.5 (OMSL 01), M16x1.5 (OMSL 02), M20x1.5 (OMSL 03), M25x1.5 (OMSL 04), M32x1.5 (OMSL 05), M40x1.5 (OMSL 06), M50x1.5 (OMSL 07), M63x1.5 (OMSL 08), M70x2.0 (OMSL 09-70), M72x1.5 (OMSL 09-72), M72x2.0 (OMSL09-72-2), M75x1.5 (OMSL 09), M80x2.0 (OMSL 09-80), M80x2.0 (OMSL 10)
• Available PG sizes and codes: PG7 (OPSL 01), PG9 (OPSL 02), PG11 (OPSL 03), PG13.5 (OPSL 04), PG16 (OPSL 05), PG21 (OPSL 06), PG29 (OPSL 07), PG36 (OPSL 08), PG42 (OPSL 09), PG48 (OPSL 10)
• Typical H (height) and wrench sizes listed per code as shown in technical data
