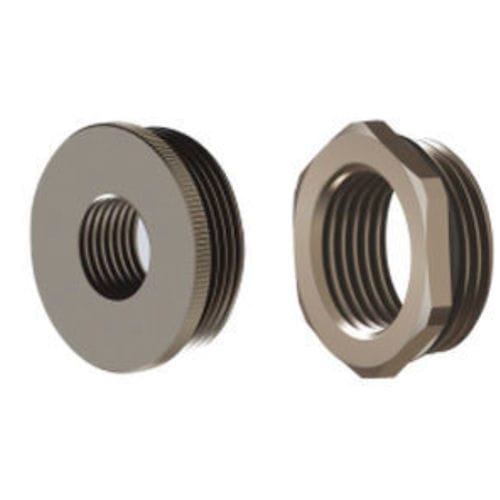

Cable gland accessory M16RM12

Overview
Reducer: Nickel plated brass
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP68
Purpose: Allows installation of cable glands with a smaller connection thread than the existing threaded hole.

Key features

• Material: nickel-plated brass for electrical and mechanical applications
• Seal: NBR O-ring for reliable ingress protection (IP68)
• Standards: available for Metric (EN60423) and PG (DIN 40430) threads
• Variants: hexagon and round type codes to fit different gland styles
• Wide size range covering M16 to M80 and PG 9 to PG 48
• Facilitates retrofit and adaptation without reworking existing panels

Technical Data
Metric thread | Code Hexagon Type | Code Round Type | IG mm | H mm | GL mm | Round Type ø mm | Hexagon Type Wrench mm

• M 16 x 1,5 | M16RM12 | M16ROM12 | M 12 x 1,5 | 9 | 6 | 18 | 18
• M 20 x 1,5 | M20RM12 | M20ROM12 | M 12 x 1,5 | 9 | 6 | 24 | 22
• M 20 x 1,5 | M20RM16 | M20ROM16 | M 16 x 1,5 | 9 | 6 | 24 | 22
• M 25 x 1,5 | M25RM16 | M25ROM16 | M 16 x 1,5 | 10 | 7 | 30 | 27
• M 25 x 1,5 | M25RM20 | M25ROM20 | M 20 x 1,5 | 10 | 7 | 30 | 27
• M 32 x 1,5 | M32RM16 | M32ROM16 | M 16 x 1,5 | 11 | 8 | 35 | 34
• M 32 x 1,5 | M32RM20 | M32ROM20 | M 20 x 1,5 | 11 | 8 | 35 | 34
• M 32 x 1,5 | M32RM25 | M25ROM25 | M 25 x 1,5 | 11 | 8 | 35 | 34
• M 40 x 1,5 | M40RM20 | M40ROM20 | M 20 x 1,5 | 12 | 8 | 45 | 45
• M 40 x 1,5 | M40RM25 | M40ROM25 | M 25 x 1,5 | 12 | 8 | 45 | 45
• M 40 x 1,5 | M40RM32 | M40ROM32 | M 32 x 1,5 | 12 | 8 | 45 | 45
• M 50 x 1,5 | M50RM25 | M50ROM25 | M 25 x 1,5 | 14 | 10 | 55 | 55
• M 50 x 1,5 | M50RM32 | M50ROM32 | M 32 x 1,5 | 14 | 10 | 55 | 55
• M 50 x 1,5 | M50RM40 | M50ROM40 | M 40 x 1,5 | 14 | 10 | 55 | 55
• M 63 x 1,5 | M63RM32 | M63ROM32 | M 32 x 1,5 | 14 | 10 | 68 | 65
• M 63 x 1,5 | M63RM40 | M63ROM40 | M 40 x 1,5 | 14 | 10 | 68 | 65
• M 63 x 1,5 | M63RM50 | M63ROM40 | M 50 x 1,5 | 14 | 10 | 68 | 65
• M 80 x 2 | M80RM75 | M80ROM75 | M 75 x 1,5 | 34 | 15 | - | 85

PG thread | Code Hexagon Type | Code Round Type | IG mm | H mm | GL mm | Round Type ø mm | Hexagon Type Wrench mm

• PG 9 | P9RP7 | P9ROP7 | PG 7 | 9 | 6 | 17 | 17
• PG 11 | P11RP7 | P11ROP7 | PG 7 | 9 | 6 | 20 | 20
• PG 11 | P11RP9 | P11ROP9 | PG 9 | 9 | 6 | 20 | 20
• PG 13,5 | P13,5RP9 | P13,5ROP9 | PG 9 | 9,5 | 6,5 | 22 | 22
• PG 13,5 | P13,5RP11 | P13,5ROP11 | PG 11 | 9,5 | 6,5 | - | 22
• PG 16 | P16RP9 | P16ROP9 | PG 9 | 9,5 | 6,5 | 24 | 24
• PG 16 | P16RP11 | P16ROP11 | PG 11 | 9,5 | 6,5 | 24 | 24
• PG 16 | P16RP13,5 | P16ROP13,5 | PG 13,5 | 9,5 | 6,5 | - | 24
• PG 21 | P21RP11 | P21ROP11 | PG 11 | 11 | 7 | 30 | 30
• PG 21 | P21RP13,5 | P21ROP13,5 | PG 13,5 | 11 | 7 | 30 | 30
• PG 21 | P21RP16 | P21ROP16 | PG 16 | 11 | 7 | 30 | 30
• PG 29 | P29RP16 | P29ROP16 | PG 16 | 12 | 8 | 40 | 40
• PG 29 | P29RP21 | P29ROP21 | PG 21 | 12 | 8 | 40 | 40
• PG 36 | P36RP21 | P36ROP21 | PG 21 | 13 | 9 | 50 | 50
• PG 36 | P36RP29 | P36ROP29 | PG 29 | 13 | 9 | 50 | 50
• PG 42 | P42RP29 | P42ROP29 | PG 29 | 14 | 10 | 59 | 60
• PG 42 | P42RP36 | P42ROP36 | PG 36 | 14 | 10 | 59 | 60
• PG 48 | P48RP36 | P48ROP36 | PG 36 | 14 | 10 | 64 | 65
• PG 48 | P48RP42 | P48ROP42 | PG 42 | 14 | 10 | 64 | 65

Notes
Technical drawing is available for dimensional reference. The product is offered in Metric (EN60423) and PG (DIN 40430) thread types with multiple size reductions and both hexagon and round type codes as listed above.
