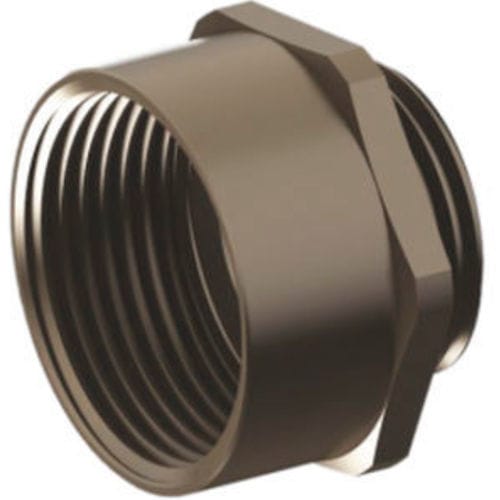

Nickel-plated brass cable gland M12EM16

nitrile butadiene rubber (NBR)IP68metric

Description
Thread enlargers in nickel-plated brass with NBR O-ring. Designed to allow installation of cable glands with larger connection threads than existing threaded holes. Compatible with Metric (EN60423) and PG (DIN 40430) standards. Protection class IP68.

Technical data
Metric-to-Metric enlargers

• M 12 x 1,5 → Code M12EM16 → IG M 16 x 1,5 → GL 6 mm → Wrench 18 mm
• M 16 x 1,5 → Code M16EM20 → IG M 20 x 1,5 → GL 6 mm → Wrench 22 mm
• M 20 x 1,5 → Code M20EM25 → IG M 25 x 1,5 → GL 6 mm → Wrench 27 mm
• M 25 x 1,5 → Code M25EM32 → IG M 32 x 1,5 → GL 7 mm → Wrench 34 mm
• M 32 x 1,5 → Code M32EM40 → IG M 40 x 1,5 → GL 8 mm → Wrench 45 mm
• M 32 x 1,5 → Code M32EM50 → IG M 50 x 1,5 → GL 8 mm → Wrench 55 mm
• M 40 x 1,5 → Code M40EM50 → IG M 50 x 1,5 → GL 8 mm → Wrench 55 mm
• M 50 x 1,5 → Code M50EM63 → IG M 63 x 1,5 → GL 10 mm → Wrench 70 mm
• M 63 x 1,5 → Code M63EM75 → IG M 75 x 1,5 → GL 15 mm → Wrench 80 mm

PG-to-PG enlargers

• PG 7 → Code P7EP9 → IG PG 9 → GL 6 mm → Wrench 18 mm
• PG 9 → Code P9EP11 → IG PG 11 → GL 6 mm → Wrench 21 mm
• PG 11 → Code P11EP13,5 → IG PG 13,5 → GL 6 mm → Wrench 23 mm
• PG 13,5 → Code P13,5EP16 → IG PG 16 → GL 6 mm → Wrench 25 mm
• PG 16 → Code P16EP21 → IG PG 21 → GL 7 mm → Wrench 32 mm
• PG 21 → Code P21EP29 → IG PG 29 → GL 7 mm → Wrench 42 mm
• PG 29 → Code P29EP36 → IG PG 36 → GL 8 mm → Wrench 50 mm
• PG 36 → Code P36EP42 → IG PG 42 → GL 9 mm → Wrench 60 mm
• PG 42 → Code P42EP48 → IG PG 48 → GL 10 mm → Wrench 65 mm

Specifications

• Material (enlarger): Nickel plated brass
• O-ring material: NBR
• Connection thread standards: Metric (EN60423) and PG (DIN 40430)
• Protection class: IP68
• Function: Allows use of cable glands with larger connection threads than existing threaded holes
• Available conversions: see Technical data lists (M12 → M75 and PG7 → PG48 ranges)
