Protection blind cover OMBK 01

insertionindustrial

Product

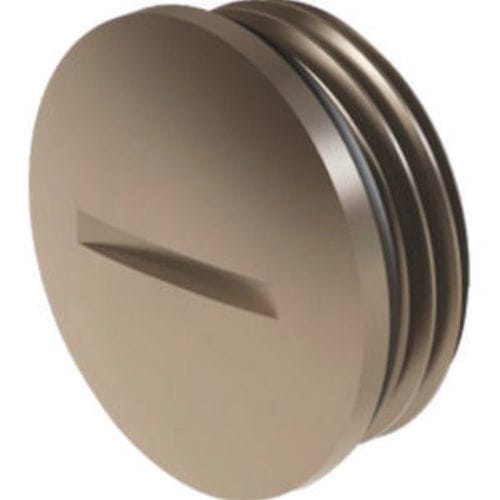

Metal blind stop for unused threaded holes. Available in OMBK (metric) and OPBK (PG) codes.

Details
Screw plug: Nickel-plated brass
O-ring: NBR
Connection thread: Metric (EN60423) / PG (DIN 40430)
Protection class: IP68
Intended for: unused threaded holes
Assembly: screwdriver
Typical applications: machine and equipment; electric motor manufacturing

Technical Data
METRIC - PG THREAD BLIND STOPS
AG Thread | Code | H mm | GL mm | D mm
M 12 x 1,5 | OMBK 01 | 7.5 | 5 | 14
M 16 x 1,5 | OMBK 02 | 8 | 5 | 18
M 20 x 1,5 | OMBK 03 | 9.5 | 6.5 | 22
M 25 x 1,5 | OMBK 04 | 11 | 7 | 28
M 32 x 1,5 | OMBK 05 | 12 | 8 | 35
M 40 x 1,5 | OMBK 06 | 13 | 8.5 | 44
M 50 x 1,5 | OMBK 07 | 15 | 9 | 54
M 63 x 1,5 | OMBK 08 | 16 | 10 | 67

PG | Code | H mm | GL mm | D mm
PG 7 | OPBK 01 | 8 | 5 | 14
PG 9 | OPBK 02 | 9 | 6 | 17
PG 11 | OPBK 03 | 9 | 6 | 20
PG 13,5 | OPBK 04 | 9.5 | 6.5 | 22
PG 16 | OPBK 05 | 9.5 | 6.5 | 24
PG 21 | OPBK 06 | 11 | 7 | 30
PG 29 | OPBK 07 | 12 | 8 | 39
PG 36 | OPBK 08 | 15 | 9 | 50
PG 42 | OPBK 09 | 16 | 10 | 57
PG 48 | OPBK 10 | 16 | 10 | 64

Characteristics / technical specifications

• Material: Nickel-plated brass (screw plug)
• O-ring material: NBR
• Connection thread standards: Metric (EN60423) and PG (DIN 40430)
• Protection class: IP68
• Intended for unused threaded holes
• Assembly method: screwdriver
• Typical applications: machine and equipment; electric motor manufacturing
• Available product codes and sizes: Metric codes OMBK 01–08 (M12–M63) and PG codes OPBK 01–10 (PG7–PG48) with corresponding H, GL and D dimensions
