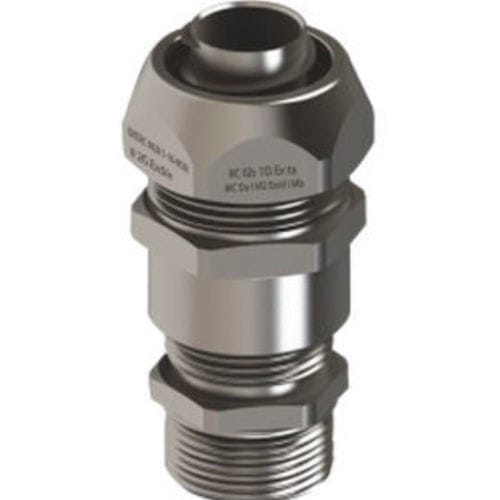

Nitrile butadiene rubber (NBR) cable gland ExMLSR series

aluminiumbrassnickel-plated brass

Product
Flexible Spiral Conduit Fittings - Liquid Tight with Cable Holder

General Information
Certificate: IEP 15 ATEX 0355 U
Protection code: II 2G Exd IIC Gb/Ex e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d I Mb/Ex e I Mb
Standards: EN 60079-0:2012, 60079-1:2007, 60079-7:2007, 60079-31:2009
Protection class: IP67
Temperature range: -20 °C to +100 °C / -30 °C to +150 °C (depending on configuration)
Cap nut: Brass with nickel plated
Clamping insert: PA6 V0
Sealing ring: TPV
Ring: PA6 V0
Ferrule: Aluminium / brass
Gland body: Brass with nickel plated
O-ring: NBR / silicone
Connection thread: Metric EN (60423)/ASME B 10.20.1 / DIN 259
Properties: Easy to assemble
Fixed or swivel body version
Apply with either LGT or CTS, CTPS conduits

Technical Data - PG / FIXED / SWIVEL BODY
Code | AG Thread | Spiral Measure | GL min. Mm | B mm | C mm | D mm | Cables mm
ExMLSRP 00 | PG 7 | 10-1/4" | 15 | 20 | 22 | 14 | 3-6,5
ExMLSRP 1A | PG 9 | 10-1/4" | 15 | 20 | 22 | 17 | 4-8
ExMLSRP 01 | PG 11 | 13-3/8" | 15 | 24 | 26 | 20 | 5-10
ExMLSRP 2A | PG 13,5 | 16-1/2" | 15 | 27 | 29 | 22 | 6-12
ExMLSRP 02 | PG 16 | 16-1/2" | 15 | 27 | 29 | 24 | 10-14
ExMLSRP 03 | PG 21 | 21-3/4" | 15 | 33 | 35 | 30 | 13-18
ExMLSRP 04 | PG 29 | 26-1" | 15 | 43 | 45 | 40 | 18-25
ExMLSRP 05 | PG 36 | 35-1 1/4" | 15 | 52 | 54 | 50 | 22-32
ExMLSRP 06 | PG 42 | 40-1 1/2" | 15 | 60 | 63 | 57 | 30-38
ExMLSRP 07 | PG 48 | 51-2" | 15 | 74 | 77 | 64 | 34-44

Technical Data - METRIC / FIXED / SWIVEL BODY
Code | AG Thread | Spiral Measure | GL min. Mm | B mm | C mm | D mm | Cables mm
ExMLSRM 00 | M 12 x 1,5 | 10-1/4" | 15 | 20 | 22 | 14 | 3-6,5
ExMLSRM 1A | M 16 x 1,5 | 10-1/4" | 15 | 20 | 22 | 18 | 4-8
ExMLSRM 01 | M 16 x 1,5 | 13-3/8" | 15 | 24 | 26 | 18 | 4-8
ExMLSRM 02 | M 20 x 1,5 | 16-1/2" | 15 | 27 | 29 | 22 | 6-12
ExMLSRM 03 | M 25 x 1,5 | 21-3/4" | 15 | 33 | 35 | 27 | 10-14
ExMLSRM 04 | M 32 x 1,5 | 26-1" | 15 | 43 | 45 | 34 | 13-18
ExMLSRM 05 | M 40 x 1,5 | 35-1 1/4" | 15 | 52 | 54 | 43 | 18-25
ExMLSRM 06 | M 50 x 1,5 | 40-1 1/2" | 15 | 60 | 63 | 55 | 22-32
ExMLSRM 07 | M 63 x 1,5 | 51-2" | 15 | 74 | 77 | 68 | 34-44
ExMLSRM 08 | M 72 x 1,5 | 63-2 1/2" | 20 | 90 | 90 | 85 | 45-55
ExMLSRM 09 | M 75 x 1,5 | 78-3" | 20 | 105 | 110 | 90 | 50-63
ExMLSRM 10 | M 90 x 2 | 102-4" | 20 | 136 | 140 | 100 | 60-70

Technical characteristics / specifications

• Certificate: IEP 15 ATEX 0355 U
• Protection code: II 2G Exd IIC Gb/Ex e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d I Mb/Ex e I Mb
• Standards: EN 60079-0:2012, 60079-1:2007, 60079-7:2007, 60079-31:2009
• Protection class: IP67
• Temperature range: -20 °C to +100 °C and -30 °C to +150 °C (depending on configuration)
• Materials: Cap nut and gland body: brass with nickel plating; Ferrule: aluminium or brass; Clamping insert and ring: PA6 V0; Sealing ring: TPV; O-ring: NBR or silicone
• Connection thread standards: Metric EN (60423), ASME B 10.20.1, DIN 259
• Versions: Fixed or swivel body
• Compatibility: For use with LGT, CTS and CTPS conduits
