Brass cable gland UNZEN series
nickel-plated brassaluminiumstainless steel

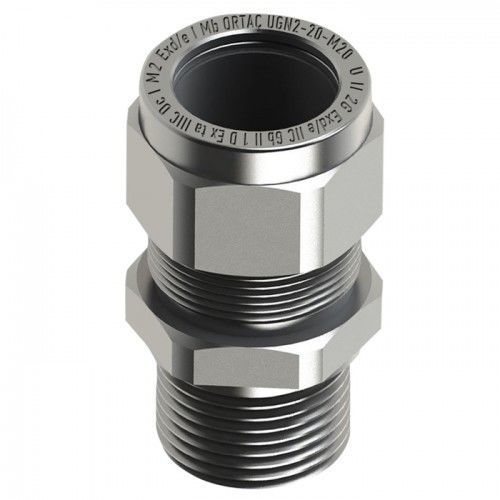

Brass cable gland - UNZEN series - ORTAC - nickel-plated brass / aluminium / stainless steel
Brass cable gland - UNZEN series - ORTAC - nickel-plated brass / aluminium / stainless steel
Brass cable gland - UNZEN series - ORTAC - nickel-plated brass / aluminium / stainless steel - image - 2
Add to favorites
Compare this product
Go to the ORTAC website for more information

Characteristics

Material
nickel-plated brass, brass, stainless steel, aluminium
Protection level
explosion-proof, IP68, for hazardous areas
Other characteristics
NPT, metric, for non-armored cables, threaded
Cable diameter

Max.: 67.9 mm
(2.67 in)

Min.: 6.1 mm
(0.24 in)

Thread diameter

Max.: 75 mm
(2.95 in)

Min.: 16 mm
(0.63 in)

Operating temperature

Max.: 180 °C
(356 °F)

Min.: -60 °C
(-76 °F)

Description

UNZEN Series Unarmoured Ex Proof Cable Glands - UG

Product Details
  • Type: UAG (Un-armoured) cable gland for unarmoured cables
  • Protection code: II 2G Ex d IIC Gb / II 2G Ex e II Gb / I M2 Ex d I Mb / I M2 Ex e I Mb / Ex tb IIIC Db
  • Certificate: IEP 14 ATEX 0217U
  • Materials: MS58 brass (with or without nickel plating), stainless steel AISI303 / 316L, aluminium
  • Standards: EN 60079-0:2012; EN 60079-7:2007; EN 60079-1:2007; EN 60079-31:2009
  • Protection class: IP68
  • Temperature range (seal dependent): NBR -30 °C to +120 °C; NEOPRENE -40 °C to +100 °C; SILICONE -60 °C to +180 °C; TPE/V -30 °C to +100 °C
  • Application zones: ZONE 1, ZONE 2, ZONE 21, ZONE 22; Gas groups: IIA, IIB, IIC
  • Cable type: Unarmoured


Technical Data - Sizes
  • 16 — Product code: UGXX/16/X | Thread: M16x1.5 | NPT: 1/2 in | B Min: 6.1 mm | B Max: 11.6 mm | GL min: 15 mm | C: 20 mm | B: 24 mm
  • 20s — Product code: UGXX/20s/X | Thread: M20sx1.5 | NPT: 1/2 in | B Min: 6.1 mm | B Max: 13.2 mm | GL min: 15 mm | C: 24 mm | B: 24 mm
  • 20 — Product code: UGXX/20/X | Thread: M20x1.5 | NPT: 1/2 in | B Min: 9.5 mm | B Max: 15.9 mm | GL min: 15 mm | C: 24 mm | B: 24 mm
  • 25 — Product code: UGXX/25/X | Thread: M25x1.5 | NPT: 3/4 in | B Min: 12.5 mm | B Max: 20.5 mm | GL min: 15 mm | C: 30 mm | B: 30 mm
  • 32 — Product code: UGXX/32/X | Thread: M32x1.5 | NPT: 1 in | B Min: 18.2 mm | B Max: 26.2 mm | GL min: 15 mm | C: 38 mm | B: 38 mm
  • 40 — Product code: UGXX/40/X | Thread: M40x1.5 | NPT: 1-1/4 in | B Min: 23.7 mm | B Max: 33.9 mm | GL min: 15 mm | C: 45 mm | B: 45 mm
  • 50 — Product code: UGXX/50/X | Thread: M50x1.5 | NPT: 1-1/2 in | B Min: 27.9 mm | B Max: 40.4 mm | GL min: 15 mm | C: 55 mm | B: 55 mm
  • 63s — Product code: UGXX/63s/X | Thread: M63sx1.5 | NPT: 2 in | B Min: 40.4 mm | B Max: 51.0 mm | GL min: 15 mm | C: 70 mm | B: 70 mm
  • 63 — Product code: UGXX/63/X | Thread: M63x1.5 | NPT: 2-1/2 in | B Min: 47.2 mm | B Max: 55.9 mm | GL min: 15 mm | C: 70 mm | B: 80 mm
  • 75s — Product code: UGXX/75s/X | Thread: M75sx1.5 | NPT: 2-1/2 in | B Min: 52.8 mm | B Max: 59.0 mm | GL min: 15 mm | C: 80 mm | B: 80 mm
  • 75 — Product code: UGXX/75/X | Thread: M75x1.5 | NPT: 3 in | B Min: 59.1 mm | B Max: 67.9 mm | GL min: 15 mm | C: 90 mm | B: 90 mm


Technical specifications
  • Type: UAG (Un-armoured) cable gland
  • Protection code and certification: II 2G Ex d IIC Gb / II 2G Ex e II Gb / I M2 Ex d I Mb / I M2 Ex e I Mb / Ex tb IIIC Db — Certificate IEP 14 ATEX 0217U
  • Materials: MS58 brass (optionally nickel plated), Stainless Steel AISI303 / 316L, Aluminium
  • Standards: EN 60079-0:2012; EN 60079-7:2007; EN 60079-1:2007; EN 60079-31:2009
  • Ingress protection: IP68
  • Temperature ranges per seal material: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
  • Intended areas: Hazardous areas ZONE 1/2/21/22 and gas groups IIA, IIB, IIC
  • Cable compatibility: unarmoured cables; available sizes and part codes listed above
