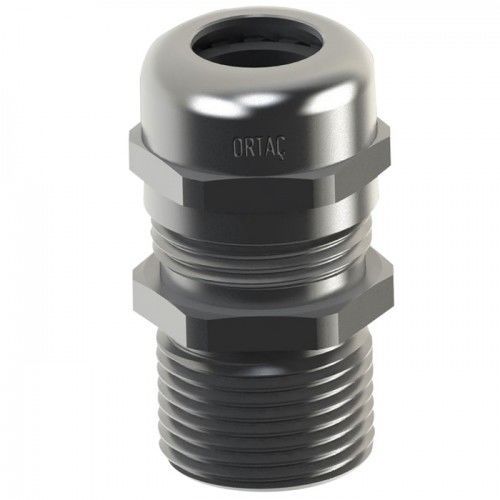

Brass cable gland UAG

nickel-plated brassaluminiumstainless steel

Product
Merapi Series unarmoured Ex-proof cable glands UAG for unarmoured cables. Available in sizes M12 to M90 with IP68 ingress protection, suitable for hazardous areas.

Key specifications

• Type: UAG (Un-armoured) single-compression gland
• Protection code: II 2G Ex d IIC Gb / II 2G Ex e II Gb / I M2 Ex d I Mb / I M2 Ex e I Mb / Ex tb IIIC Db
• ATEX certificate: IEP 14 ATEX 0217U (UAG series)
• Materials: MS58 Brass (optionally nickel plated), AISI 303 / AISI 316L stainless steel, Aluminium
• Standards: EN 60079-0:2012, EN 60079-7:2007, EN 60079-1:2007, EN 60079-31:2009
• Ingress protection: IP68
• Temperature seals: NBR (-30 °C to +120 °C), Neoprene (-40 °C to +100 °C), Silicone (-60 °C to +180 °C), TPE/V (-30 °C to +100 °C)
• Application area: Zone 1, Zone 2, Zone 21, Zone 22; Gas groups IIA, IIB, IIC
• Cable type: Unarmoured

Technical data (sizes & codes)
Exd series:

• M12 | Code UAGXX/12/X | Thread M12x1.5 | AG 3/8 in | GL min.: 15 mm | Clamping range: 3–6.5 mm | Wrench B: 14 | C: 14
• M16 | Code UAGXX/16/X | Thread M16x1.5 | AG 3/8 in | GL min.: 15 mm | Clamping range: 4–8 mm | Wrench B: 18 | C: 17
• M20 | Code UAGXX/20/X | Thread M20x1.5 | AG 1/2 in | GL min.: 15 mm | Clamping range: 6–12 mm | Wrench B: 22 | C: 22
• M25s | Code UAGXX/25s/X | Thread M25x1.5 | AG 3/4 in | GL min.: 15 mm | Clamping range: 10–14 mm | Wrench B: 27 | C: 24
• M25 | Code UAGXX/25/X | Thread M25x1.5 | AG 3/4 in | GL min.: 15 mm | Clamping range: 13–18 mm | Wrench B: 30 | C: 30
• M32 | Code UAGXX/32/X | Thread M32x1.5 | AG 1 in | GL min.: 15 mm | Clamping range: 13–18 mm | Wrench B: 34 | C: 30
• M40 | Code UAGXX/40/X | Thread M40x1.5 | AG 1 1/4 in | GL min.: 15 mm | Clamping range: 18–25 mm | Wrench B: 43 | C: 40
• M50 | Code UAGXX/50/X | Thread M50x1.5 | AG 1 1/2 in | GL min.: 15 mm | Clamping range: 22–32 mm | Wrench B: 55 | C: 50
• M63s | Code UAGXX/63s/X | Thread M63x1.5 | AG 2 in | GL min.: 15 mm | Clamping range: 33–44 mm | Wrench B: 68 | C: 64
• M63 | Code UAGXX/63/X | Thread M63x1.5 | AG 2 in | GL min.: 15 mm | Clamping range: 45–50 mm | Wrench B: 70 | C: 75
• M75s | Code UAGXX/75s/X | Thread M75x1.5 | AG 2 1/2 in | GL min.: 20 mm | Clamping range: 45–55 mm | Wrench B: 85 | C: 75
• M75 | Code UAGXX/75/X | Thread M75x1.5 | AG 2 1/2 in | GL min.: 20 mm | Clamping range: 50–63 mm | Wrench B: 90 | C: 90
• M80 | Code UAGXX/80/X | Thread M80x2.0 | AG 3 in | GL min.: 20 mm | Clamping range: 50–63 mm | Wrench B: 90 | C: 90
• M90 | Code UAGXX/90/X | Thread M90x2.0 | AG 3 in | GL min.: 20 mm | Clamping range: 60–70 mm | Wrench B: 100 | C: 100

Exe series (selected rows):

• M12 | Code EUAGXX/12/X | Thread M12x1.5 | AG 3/8 in | GL min.: 6 mm | Clamping range: 3–6.5 mm | Wrench B: 14 | C: 14
• M16 | Code EUAGXX/16/X | Thread M16x1.5 | AG 3/8 in | GL min.: 7 mm | Clamping range: 4–8 mm | Wrench B: 18 | C: 17
• M20 | Code EUAGXX/20/X | Thread M20x1.5 | AG 1/2 in | GL min.: 8 mm | Clamping range: 6–12 mm | Wrench B: 22 | C: 22
• M25s | Code EUAGXX/25s/X | Thread M25x1.5 | AG 3/4 in | GL min.: 8 mm | Clamping range: 10–14 mm | Wrench B: 27 | C: 24
• M25 | Code EUAGXX/25/X | Thread M25x1.5 | AG 3/4 in | GL min.: 8 mm | Clamping range: 13–18 mm | Wrench B: 30 | C: 30
• M32 | Code EUAGXX/32/X | Thread M32x1.5 | AG 1 in | GL min.: 9 mm | Clamping range: 13–18 mm | Wrench B: 34 | C: 30
• M40 | Code EUAGXX/40/X | Thread M40x1.5 | AG 1 1/4 in | GL min.: 9 mm | Clamping range: 18–25 mm | Wrench B: 43 | C: 40
• M50 | Code EUAGXX/50/X | Thread M50x1.5 | AG 1 1/2 in | GL min.: 9 mm | Clamping range: 22–32 mm | Wrench B: 55 | C: 50
• M63s | Code EUAGXX/63s/X | Thread M63x1.5 | AG 2 in | GL min.: 14 mm | Clamping range: 33–44 mm | Wrench B: 68 | C: 64
• M63 | Code EUAGXX/63/X | Thread M63x1.5 | AG 2 in | GL min.: 15 mm | Clamping range: 45–50 mm | Wrench B: 70 | C: 75
• M75s | Code EUAGXX/75s/X | Thread M75x1.5 | AG 2 1/2 in | GL min.: 20 mm | Clamping range: 45–55 mm | Wrench B: 85 | C: 75
• M75 | Code EUAGXX/75/X | Thread M75x1.5 | AG 2 1/2 in | GL min.: 20 mm | Clamping range: 50–63 mm | Wrench B: 90 | C: 90
• M80 | Code EUAGXX/80/X | Thread M80x2.0 | AG 3 in | GL min.: 20 mm | Clamping range: 50–63 mm | Wrench B: 90 | C: 90
• M90 | Code EUAGXX/90/X | Thread M90x2.0 | AG 3 in | GL min.: 20 mm | Clamping range: 60–70 mm | Wrench B: 100 | C: 100

Features / Technical specifications

• Type: UAG unarmoured cable gland (single compression)
• Protection code: II 2G Ex d IIC Gb / II 2G Ex e II Gb / I M2 Ex d I Mb / I M2 Ex e I Mb / Ex tb IIIC Db
• ATEX Certificate: IEP 14 ATEX 0217U (UAG series)
• Materials: MS58 Brass (optionally nickel plated), AISI 303 / AISI 316L stainless steel, Aluminium
• Standards: EN 60079-0:2012, EN 60079-7:2007, EN 60079-1:2007, EN 60079-31:2009
• Ingress protection: IP68
• Temperature seals available: NBR, Neoprene, Silicone, TPE/V with respective temperature ranges
• Suitable for hazardous areas: Zone 1, Zone 2, Zone 21, Zone 22; Gas groups IIA, IIB, IIC
• Cable type: Unarmoured
• Available sizes: M12 up to M90 with corresponding clamping ranges and wrench sizes as listed
