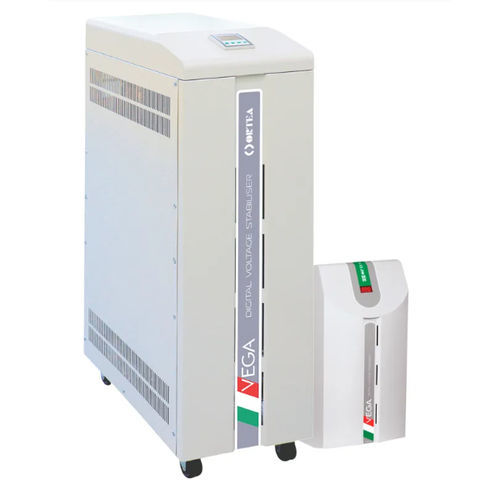

AC voltage stabilizer Vega

single-phase

Short description
Electro-mechanical single-phase voltage stabiliser Vega, available in multiple power variants from 0.3 to 25 kVA, designed for indoor installation to maintain stable output voltage despite input fluctuations.

Key features

• Single-phase electro-mechanical regulation
• Selectable target voltage: 220/230/240V (dip switch)
• Output voltage accuracy: ±0.5%
• Admitted load variation up to 100% and overload capability 200% for 2 minutes
• Cooling by natural ventilation; indoor use
• Colour: RAL 7035; instrumentation: output digital voltmeter

Variants — Vega ±20%/±15%
Type | Rated power | Max input current | Rated output current
0.7-20 | 0.7 | 3.8 | 3
1-15 | 1 | 5 | 4.3
2-20 | 2 | 11 | 8.7
2.5-15 | 2.5 | 13 | 11
4-20 | 4 | 22 | 17
5-15 | 5 | 26 | 22
5-20 | 5 | 27 | 22
7-15 | 7 | 36 | 30
7-20 | 7 | 38 | 30
10-15 | 10 | 51 | 43
10-20 | 10 | 54 | 43
15-15 | 15 | 77 | 65
15-20 | 15 | 82 | 65
20-15 | 20 | 103 | 87
20-20 | 20 | 109 | 87
25-15 | 25 | 128 | 109

Variants — Vega ±30%/±25%
Type | Rated power | Max input current | Rated output current
0.3-30 | 0.3 | 1.9 | 1.3
0.5-25 | 0.5 | 2.9 | 2.2
1-30 | 1 | 6.2 | 4.3
1.5-25 | 1.5 | 8.7 | 6.5
2-30 | 2 | 12 | 8.7
3-25 | 3 | 17 | 13
3-30 | 3 | 19 | 13
4-25 | 4 | 23 | 17
4-30 | 4 | 25 | 17
5-25 | 5 | 29 | 22
5-30 | 5 | 31 | 22
7-25 | 7 | 41 | 30
7-30 | 7 | 43 | 30
10-25 | 10 | 58 | 43
10-30 | 10 | 62 | 43
15-25 | 15 | 87 | 65

Variants — Vega +15%/-25%
Type | Rated power | Max input current | Rated output current
0.7-15/25 | 0.7 | 4 | 3
2-15/25 | 2 | 12 | 8.7
4-15/25 | 4 | 23 | 17
5-15/25 | 5 | 29 | 22
7-15/25 | 7 | 41 | 30
10-15/25 | 10 | 58 | 43
15-15/25 | 15 | 87 | 65
20-15/25 | 20 | 116 | 87

Variants — Vega +15%/-35%
Type | Rated power | Max input current | Rated output current
0.5-15/35 | 0.5 | 3.4 | 2.2
1.5-15/35 | 1.5 | 10 | 6.5
3-15/35 | 3 | 20 | 13
4-15/35 | 4 | 27 | 17
5-15/35 | 5 | 33 | 22
7-15/35 | 7 | 47 | 30
10-15/35 | 10 | 67 | 43
15-15/35 | 15 | 100 | 65

Variants — Vega +15%/-45%
Type | Rated power | Max input current | Rated output current
0.3-15/45 | 0.3 | 2.4 | 1.3
1-15/45 | 1 | 7.8 | 4.3
2-15/45 | 2 | 16 | 8.7
3-15/45 | 3 | 24 | 13
4-15/45 | 4 | 32 | 17
5-15/45 | 5 | 40 | 22
7-15/45 | 7 | 56 | 30
10-15/45 | 10 | 79 | 43

Technical specifications

• Frequency: 50Hz ±5% or 60Hz ±5%
• Selectable target voltage: 220-230-240V (dip switch)
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Cooling: Natural ventilation
• Operating ambient temperature: -25 to +45°C
• Storage temperature: -25 to +60°C
• Max related humidity: <95% (non condensing)
• Admitted overload capability: 200% for 2 minutes
• Harmonic distortion: none introduced
• Colour: RAL 7035

Instrumentation & Installation

• Output digital voltmeter
• Installation environment: Indoor
