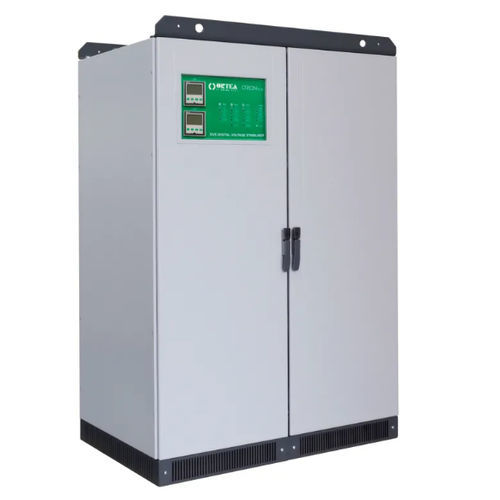

AC voltage stabilizer Orion plus

three-phaseservo-automatic

Presentation
Electro-mechanical voltage stabiliser for industrial applications, available in multiple power ratings from 30 kVA up to 2000 kVA. Designed for three-phase systems with selectable target-voltage windows.

Technical specifications

• Technology: Electro-mechanical voltage stabiliser
• Frequency support: 50Hz ±5% or 60Hz ±5%
• Independent phase control
• Selectable target voltage ranges: 210–255V (L‑N) / 360–440V (L‑L)
• Output voltage accuracy: ±0.5%
• Admitted load variation: up to 100%
• Admitted overload: 200% for 2 minutes
• Load imbalance tolerance: up to 100%
• Cooling: Natural ventilation (assisted by fans above 35°C)
• Operating temperature: -25°C to +45°C (storage up to +60°C)
• Max relative humidity: <95% non-condensing
• Harmonic distortion: none introduced

Variants — Orion plus ±10% (table)
Type | Rated power (kVA) | Max input current (A) | Rated output current (A)
125-10 | 125 | 200 | 180
160-10 | 160 | 257 | 231
200-10 | 200 | 321 | 289
250-10 | 250 | 401 | 361
320-10 | 320 | 513 | 462
400-10 | 400 | 642 | 577
500-10 | 500 | 802 | 722
630-10 | 630 | 1010 | 909
800-10 | 800 | 1283 | 1155
1000-10 | 1000 | 1604 | 1443
1250-10 | 1250 | 2005 | 1804
1600-10 | 1600 | 2566 | 2309
2000-10 | 2000 | 3208 | 2887

Notes on product family and variants
The Orion plus range is available in multiple target-voltage windows and compensation ranges (examples include ±10%, ±15%/±20%, ±25%/±30%, +15%/-35%, +15%/-45%), with multiple type variants for each range defined by Type, Rated power, Max input current and Rated output current.

Instrumentation, installation and protections

• Instrumentation: input & output digital multimeter
• Overvoltage protection: Class II output surge arrestors
• Blackout behaviour: optimal voltage return via supercapacitors
• Installation: Indoor

Colour
RAL 7035

Remarks
Product available in numerous adjustment ranges and power ratings (from 30 kVA up to 2000 kVA depending on variant).
