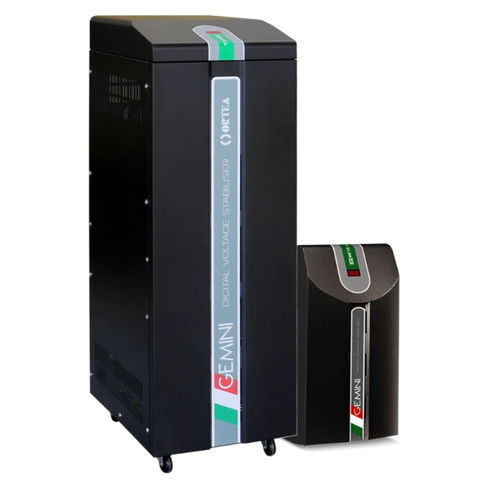

Single-phase voltage stabilizer Gemini

staticelectronic

Short description
Gemini is a single‑phase static voltage stabiliser designed to maintain a stable supply and protect sensitive loads from input voltage variations in industrial and commercial installations.

Technical specifications

• Frequency: 50Hz ±5% or 60Hz ±5%
• Voltage regulation: IGBT controlled
• Selectable target voltage: 220-230-240 V
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Cooling: Forced ventilation
• Operating ambient temperature: -25/+45 °C
• Storage temperature: -25/+60 °C
• Max relative humidity: <95% (non condensing)
• Admitted overload: 150% for 2 seconds
• Colour: RAL 9005
• Instrumentation: Output digital voltmeter
• Installation: Indoor
• Overvoltage protection: Class II output surge arrestors
• Additional protections: EMI/RFI filters; Automatic protection by‑pass

Models / Variants (±20%/±15%)
Type | Rated power (kVA) | Max input current (A) | Rated output current (A)
ES7-20 | 7 | 38 | 30
ES10-15 | 10 | 51 | 43
ES10-20 | 10 | 54 | 43
ES15-15 | 15 | 77 | 65
ES15-20 | 15 | 82 | 65
ES20-15 | 20 | 103 | 87
ES20-20 | 20 | 109 | 87
ES30-15 | 30 | 154 | 130
ES30-20 | 30 | 163 | 130
ES40-15 | 40 | 205 | 174

Models / Variants (±30%/±25%)
Type | Rated power (kVA) | Max input current (A) | Rated output current (A)
ES4-30 | 4 | 25 | 17
ES5-25 | 5 | 29 | 22
ES5-30 | 5 | 31 | 22
ES7-25 | 7 | 41 | 30
ES7-30 | 7 | 43 | 30
ES10-25 | 10 | 58 | 43
ES10-30 | 10 | 62 | 43
ES15-25 | 15 | 87 | 65
ES15-30 | 15 | 93 | 65
ES20-25 | 20 | 116 | 87

Characteristics / technical specifications

• Frequency: 50Hz ±5% or 60Hz ±5%
• Voltage regulation: IGBT controlled
• Selectable target voltage: 220/230/240 V
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Cooling: Forced ventilation
• Operating ambient temperature: -25/+45 °C
• Storage temperature: -25/+60 °C
• Max relative humidity: <95% (non condensing)
• Admitted overload: 150% for 2 seconds
• Colour: RAL 9005
• Instrumentation: Output digital voltmeter
• Installation: Indoor
• Overvoltage protection: Class II output surge arrestors
• Additional protections: EMI/RFI filters; Automatic protection by‑pass
