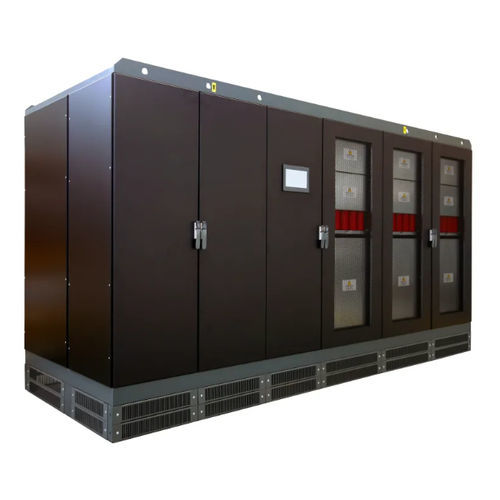

Three-phase voltage stabilizer ODYSSEY

automaticelectronic

Product overview
Three-phase voltage stabiliser Odyssey designed to provide stable output voltage for industrial electrical installations. Power range: 80–4000 kVA. IGBT control with double-conversion topology and independent phase regulation. Indoor installation; protects connected equipment from input voltage fluctuations, unbalances and transient surges. Automatic by-pass for overload conditions.

Technical specifications
Frequency: 50 Hz ±5% or 60 Hz ±5%
Voltage regulation: IGBT control (double-conversion technology)
Adjusting energy parameters: Independent phase control
Selectable target voltages: 220 / 230 / 240 V (L-N) — 380 / 400 / 415 V (L-L)
Output voltage accuracy: ±0.5%
Admitted load variation: Up to 100%
Admitted load imbalance [%]: 100
Cooling: Forced ventilation
Ambient temperature: 0 to +40°C
Storage temperature: 0 to +60°C
Maximum relative humidity (non-condensing): <95%
Admitted overload: 110% continuous, 120% for 60 s, >120% automatic by-pass protection
Colour: RAL 9005
Instrumentation:

• 10" touch panel, multilingual (remote access available via dedicated software on the same Ethernet network)

Installation: Indoor
Communication system: MODBUS TCP/IP
Overvoltage protection:

• Class I input surge arrestors
• Class II output surge arrestors

Additional protections:

• Automatic by-pass protection

Key characteristics

• Rated power range: 80 kVA to 4000 kVA (multiple model variants available)
• Frequency selectable: 50 Hz ±5% or 60 Hz ±5%
• Selectable target voltages: 220 / 230 / 240 V (line-to-neutral) and 380 / 400 / 415 V (line-to-line)
• Output voltage accuracy: ±0.5%
• Admitted continuous overload: 110%; short-term 120% for 60 s; >120% managed by automatic by-pass
• Cooling method: forced ventilation
• Operating ambient temperature: 0 to +40 °C; storage: 0 to +60 °C
• Maximum relative humidity (non-condensing): <95%
• Control and monitoring: 10" multilingual touch panel; remote access via dedicated software over Ethernet
• Communication: MODBUS TCP/IP
• Overvoltage protection: Class I input and Class II output surge arrestors
• Installation: indoor
