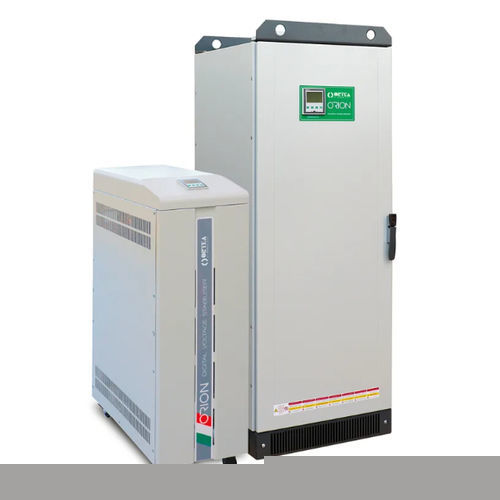

Three-phase voltage stabilizer Orion

servo-automatic

Overview
The Orion electro-mechanical three-phase voltage stabiliser provides regulated output voltage for industrial loads. Available in multiple adjustment ranges with rated powers from 2 to 135 kVA.

Applications

• Protection of industrial equipment and production lines against mains voltage instability
• Supply for motors, control cabinets and sensitive instrumentation
• Use in commercial and light-industrial facilities requiring stable voltage

Key technical specifications

• Frequency: 50Hz ±5% or 60Hz ±5%
• Adjusting energy parameters: Independent phase control
• Selectable output nominals: 220–230–240V (L-N) and 380–400–415V (L-L)
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Admitted load imbalance: Up to 100%
• Cooling: Natural ventilation up to 45 kVA ±15%; larger units supplied with appropriate cooling
• Operating temperature: -25°C to +45°C; Storage: -25°C to +60°C
• Max relative humidity: <95% (non-condensing)
• Admitted overload: 200% for 2 minutes
• Harmonic distortion: None introduced
• Instrumentation: Output digital multimeter
• Installation: Indoor
• Overvoltage protection: Output class II surge arrestors from >60 kVA ±15%

Available variants
The Orion family includes adjustment ranges ±20%/±15%, ±30%/±25%, +15%/−25%, +15%/−35% and +15%/−45%, with rated powers covering 2–135 kVA. Datasheets are available for each type and variant.

Documentation & services

• Technical datasheets for all variants
• Custom configuration and technical support on request
