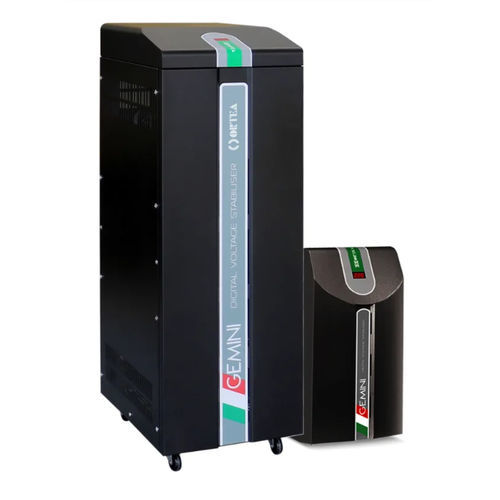

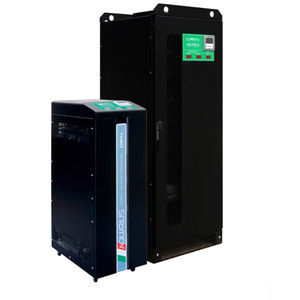

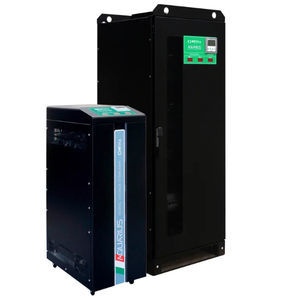

Single-phase voltage stabilizer GEMINI PLUS

staticautomaticelectronic

Overview
Single-phase voltage stabiliser 4-40 kVA. Effective technological solution to avoid problems caused by input voltage instability.

Category
STATIC VOLTAGE STABILISERS

Main technical information

• Frequency: 50Hz ±5% or 60Hz ±5%
• Voltage regulation: IGBT controlled
• Selectable target voltage: 220-230-240V
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Cooling: Forced ventilation
• Ambient temperature: -25/+45°C
• Storage temperature: -25/+60°C
• Max relative humidity: <95% (non condensing)
• Admitted overload: 150% 2 sec.
• Colour: RAL 9005

Variants (±20%/±15%)
ESP7-20 — Rated power: 7 kVA — Max input current: 38 A — Rated output current: 30 A
ESP10-15 — Rated power: 10 kVA — Max input current: 51 A — Rated output current: 43 A
ESP10-20 — Rated power: 10 kVA — Max input current: 54 A — Rated output current: 43 A
ESP15-15 — Rated power: 15 kVA — Max input current: 77 A — Rated output current: 65 A
ESP15-20 — Rated power: 15 kVA — Max input current: 82 A — Rated output current: 65 A
ESP20-15 — Rated power: 20 kVA — Max input current: 103 A — Rated output current: 87 A
ESP20-20 — Rated power: 20 kVA — Max input current: 109 A — Rated output current: 87 A
ESP30-15 — Rated power: 30 kVA — Max input current: 154 A — Rated output current: 130 A
ESP30-20 — Rated power: 30 kVA — Max input current: 163 A — Rated output current: 130 A
ESP40-15 — Rated power: 40 kVA — Max input current: 205 A — Rated output current: 174 A

Variants (±30%/±25%)
ESP4-30 — Rated power: 4 kVA — Max input current: 25 A — Rated output current: 17 A
ESP5-25 — Rated power: 5 kVA — Max input current: 29 A — Rated output current: 22 A
ESP5-30 — Rated power: 5 kVA — Max input current: 31 A — Rated output current: 22 A
ESP7-25 — Rated power: 7 kVA — Max input current: 41 A — Rated output current: 30 A
ESP7-30 — Rated power: 7 kVA — Max input current: 43 A — Rated output current: 30 A
ESP10-25 — Rated power: 10 kVA — Max input current: 58 A — Rated output current: 43 A
ESP10-30 — Rated power: 10 kVA — Max input current: 62 A — Rated output current: 43 A
ESP15-25 — Rated power: 15 kVA — Max input current: 87 A — Rated output current: 65 A
ESP15-30 — Rated power: 15 kVA — Max input current: 93 A — Rated output current: 65 A
ESP20-25 — Rated power: 20 kVA — Max input current: 116 A — Rated output current: 87 A

Protections and devices

• Overvoltage protection: Class II output surge arrestors
• EMI/RFI filters
• Input circuit breaker
• Protection by-pass (automatic)
• Maintenance by-pass (manual)

Instrumentation & installation

• Output digital voltmeter
• Installation: Indoor
• Cooling: Forced ventilation

Technical specifications

• Frequency: 50Hz ±5% or 60Hz ±5%
• Voltage regulation: IGBT controlled
• Selectable target voltage: 220-230-240V
• Output voltage accuracy: ±0.5%
• Admitted load variation: Up to 100%
• Admitted overload capability: 150% for 2 seconds
• Ambient temperature range: -25 to +45°C
• Storage temperature range: -25 to +60°C
• Max relative humidity: <95% (non condensing)
