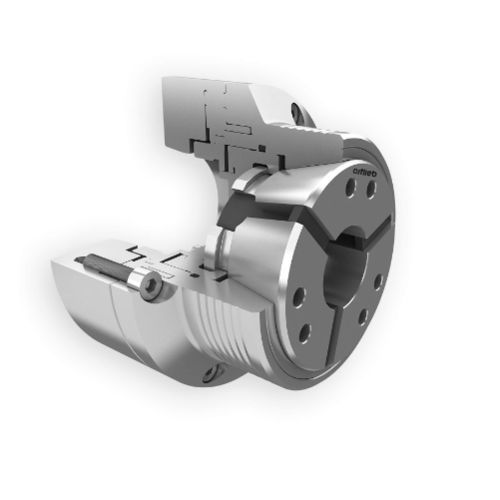

Dead length collet turning chuck SPANNAX® DL

Dead length collet turning chuck - SPANNAX® DL - Ortlieb Präzisions-
Dead length collet turning chuck - SPANNAX® DL - Ortlieb Präzisions-
Add to favorites
Compare this product

Characteristics

Other characteristics
dead length collet
Rotational speed

5,500 rpm, 6,000 rpm, 7,000 rpm, 8,000 rpm
(34,557.5192 rad.min-1, 37,699.1118 rad.min-1, 43,982.2972 rad.min-1, 50,265.4825 rad.min-1)

Outer diameter

Max.: 230 mm
(9 in)

Min.: 105 mm
(4 in)

Description

SPANNAX® DL-Dead Length Chuck "Combi" Ideal for processing of insert parts and barmaterial on main and sub-spindle Your benefit: • Extension of working space due to compact design and reduction of interfering edges • Spindle preserving by small centrifugal force and axial-force free clamping • Short changeover time from endstop chuck to through hole chuck by quick-changeable endstop
