Cylindrical plug ST series

parallelmalelow-density polyethylene (LDPE)

Product name
PARALLEL PROTECTION PLUG (ST series)

Description
Plastic parallel protection plugs designed to protect holes and threaded openings from dust, dirt and liquids. Suitable for a wide range of industrial applications including mechanics, bodywork, boating, modelling and automotive. Available in many shapes and sizes and manufactured in different materials according to use (examples: PVC, polythene (PE - LD), EPDM, silicone). Plugs can function as male or female protection and many references are multifunctional across applications.

Material / Color / Note
Material: POLYTHENE (PE - LD)
Color: NATURAL
Note: GAS column also valid for BSP thread types

Images

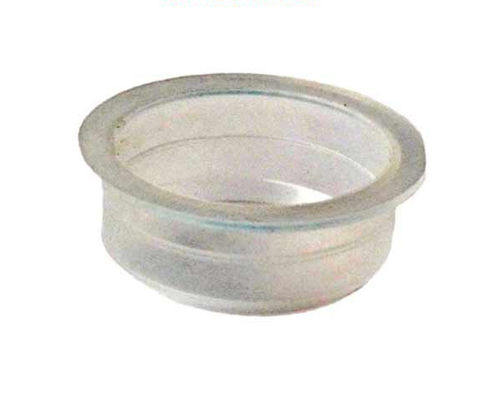

Product image and technical design drawings are available for the PARALLEL PROTECTION PLUG.

Sizes
Table columns: CODE, D, D1, H, Y, GAS, DN
CODE, D, D1, H, Y, GAS, DN
ST002, 6,5, 2, 3, 2,25, -, -
ST002,5, 6,5, 2,5, 3,5, 2, -, -
ST003, 6,5, 3, 4,5, 1,75, -, -
ST003,5, 7, 3,5, 4,5, 1,75, -, -
ST004, 7,5, 4, 5, 1,75, -, -
ST004,5, 8, 4,5, 5, 1,75, -, -
ST005, 9, 5, 6, 2, -, -
ST005,5, 9, 5,5, 6, 1,75, -, -
ST006, 9,5, 6, 6, 1,75, -, -
ST006,5, 10, 6,5, 7, 1,75, -, -
ST007, 10, 7, 6, 1,50, -, -
ST007,5, 10,5, 7,5, 6,5, 1,50, -, -
ST008, 11, 8, 7, 1,50, -, -
ST008,5, 11,5, 8,5, 7,5, 1,50, -, -
ST009, 12, 9, 7,5, 1,50, 1/8\", -
ST009,5, 12,5, 9,5, 7,5, 1,50, -, -
ST010, 13, 10, 8,5, 1,50, -, -
ST010,5, 13,5, 10,5, 8,5, 1,50, DN10
ST011, 14,5, 11, 8,5, 1,75, -, -
ST011,5, 14,5, 11,5, 8,5, 1,50, -, -
ST012, 14,5, 12, 9, 1,25, 1/4\", -
ST012,5, 15,5, 12,5, 9, 1,50, -, -
ST013, 16,5, 13, 9,5, 1,75, -, -
ST013,5, 16,5, 13,5, 9,5, 1,50, -, -
ST014, 17,5, 14, 10, 1,75, -, -
ST014,5, 17,5, 14,5, 9,5, 1,50, -, -
ST015, 18, 15, 9,5, 1,50, -, -
ST015,5, 18,5, 15,5, 9,5, 1,50, 3/8\", DN15
ST016, 19,5, 16, 10, 1,75, -, -
ST016,5, 19,5, 16,5, 10,5, 1,50, -, -
ST017, 20,5, 17, 10,5, 1,75, -, -
ST017,5, 21, 17,5, 10,5, 1,75, -, -
ST018, 21,5, 18, 10,5, 1,75, -, -
ST018,5, 23, 18,5, 10, 2,25, -, -
ST019, 22, 19, 10, 1,50, 1/2\", -
ST019,5, 23, 19,5, 10,5, 1,75, -, -
ST020, 23,5, 20, 11, 1,75, -, -
ST020,5, 24,5, 20,5, 10,5, 2, DN20
ST021, 24,5, 21, 11, 1,75, 5/8\", -
ST021,5, 25,5, 21,5, 11, 2, -, -
ST022, 25,5, 22, 11, 1,75, -, -
ST022,5, 26, 22,5, 10,5, 1,75, -, -
ST023, 27, 23, 10,5, 2, -, -
ST023,5, 27,5, 23,5, 10,5, 2, -, -
ST024, 28, 24, 11,5, 2, -, -
ST024,5, 28, 24,5, 10,5, 1,75, 3/4\", -
ST025, 30, 25, 11, 2,50, 3/4\", -
ST025,5, 29, 25,5, 10,5, 1,75, -, DN25
ST026, 30,5, 26, 10,5, 2,25, -, -
ST026,5, 30, 26,5, 10,5, 1,75, -, -
ST027, 31, 27, 9,5, 2, -, -
ST027,5, 31, 27,5, 10,5, 1,75, -, -
ST028, 32,5, 28, 10,5, 2,25, -, -
ST028,5, 32, 28,5, 10, 1,75, 7/8\", -
ST029, 32, 29, 9,5, 1,50, -, -
ST029,5, 33, 29,5, 10,5, 1,75, -, -
ST030, 33, 30, 10, 1,50, -, -
ST030,5, 34, 30,5, 10, 1,75, -, -
ST031, 36, 31, 10,5, 2,50, 1\", -
ST031,5, 35, 31,5, 10,5, 1,75, -, -
ST032, 37, 32, 10,5, 2,50, -, -
ST032,5, 37,5, 32,5, 10,5, 2,50, DN32

Characteristics / technical specifications

• Denomination: ST series (multiple codes ST002 ... ST390 found in the sizes table)
• Material: POLYTHENE (PE - LD) (product example shown on page; other materials available)
• Color: NATURAL
• Note: GAS column also valid for BSP thread types
• Applications: protection of holes and threads in mechanics, bodywork, boating, modelling, automotive and other industrial uses
• Available forms: male and female plugs; product image and technical drawing available
• Size range: from small diameters (approx. 6.5 mm) up to very large diameters (examples in table up to several hundred mm); many intermediate sizes and series codes provided
