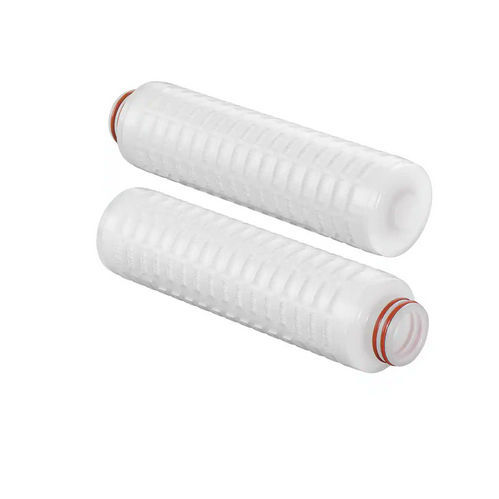

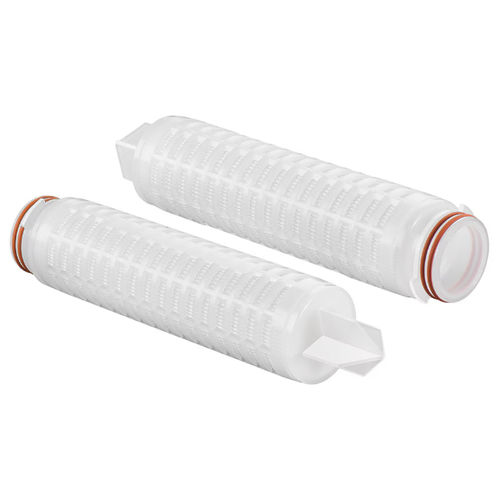

Water filter cartridge Clariflow® - E
ultra-filtrationpolyethersulfonemembrane

water filter cartridge
water filter cartridge
Add to favorites
Compare this product


Characteristics

Media
water
Type of filtration
ultra-filtration
Material
polyethersulfone
Other characteristics
membrane
Applications
for water treatment
Field
for microelectronics manufacturing
Removal rating

Max.: 0.8 µm

Min.: 0.02 µm

Flow rate

Max.: 4.8 us gal/min (18.17 l/min)

Min.: 0.5 us gal/min (1.89 l/min)

Description

Clariflow® -E filter cartridges are optimized for use in microelectronics applications such as DI water and aqueous-based chemicals in the removal of both organic and inorganic particulates. Clariflow® -E filter cartridges are optimized for use in microelectronics applications such as DI water and aqueous-based chemicals. The unique mirrored-anisotropic PES (Polyethersulfone) filter membrane has exceptionally high flow rates and on-stream lifetime while providing consistent removal of both organic and inorganic particulates. The combination of hydrophilic PES filter membrane and a high-purity, all-polypropylene support structure results in a very low level of ionic and organic extractables, broad chemical compatibility, and resistance to particle shedding. Every filter cartridge is fabricated in a clean room environment, pre-flushed with 18 megohm-cm ultrapure DI water, and 100% integrity tested in an ISO-certified facility. Features/Benefits • High-retention hydrophilic membrane • High flow rate • Broad chemical compatibility for multiple applications • Long on-stream life • 100% integrity tested Applications • BOE filtration • Dilute HF filtration • POU DI rinse filtration • Bulk DI water systems filtration • Copper plating filtration • Ni plating filtration • Hard disk wash process filtration • Filtration of other dilute acids and bases
