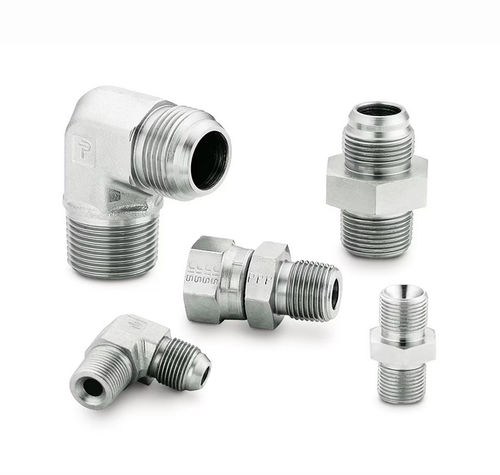

Pipe hydraulic adapter 12C3P4S

industrialmale hosesteel

Parker's Japanese Industrial Standard (JIS) adapters address market requirements for OEM and replacement fittings used as hose adapters on equipment designed and/or manufactured in Japan and Korea. JIS adapters meet JIS B2351 and B8363 standards. Markets: • Construction • Mobile Equipment Features/Benefits: • Designed with BSPP and BSPT port ends and two styles of hose ends: T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads. • The T4, 30° flare BSPP threads, and P4, 60° cone BSPP threads, interfaces provide end user flexibility of connecting to the most common Parker hose ends available: series UT, GU, G1, G2 and FU. • Available in steel in sizes ¼” through 1” with working pressures up to 5000 psi. Applications: • Hydraulic fluid handling connections Performance Characteristics Maximum Operating Pressure 5000 (Dynamic Pressure) psi 34 (Dynamic Pressure) MPa 345 (Dynamic Pressure) bar Connection Type Flare Materials of Construction Steel, Zinc Plated Application Various Shape 45°, 90°, and Straight Fitting Type Hose Adapter Specifications Met JIS B8363
