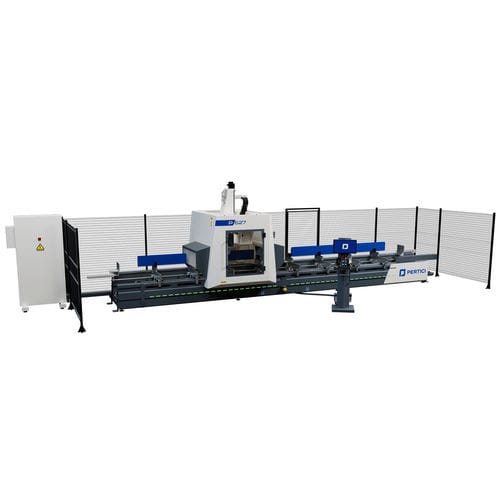

5-axis machining center PREMIUM series

swiveling-spindlefor steelfor aluminum

Product overview
5-axis CNC machining center designed for milling, drilling, threading, cutting and end-milling of bars and large workpieces in aluminium, PVC, light alloys and steel. Configurable for different production layouts to deliver flexibility and high throughput in industrial applications.

Versions and working modes

• Two length versions: 7 m and 9 m.
• Working modes: single working area or pendulum mode with two independent working areas for continuous loading and higher productivity.

Spindle and tool holder
Electro-spindle rated 11 kW (S1) with HSK-F63 tool holder, suitable for heavy-duty industrial machining and precise finishing operations.

Axes and movements
The A and C head axes provide wide-angle positioning: A-axis ±90°, C-axis ±320°, enabling complex compound and angled operations using the 5 interpolated controlled axes.

Tool magazine and blade tool
Integrated 16-position rotating tool magazine mounted on the carriage for standard and disk cutters up to Ø180 mm. A dedicated magazine houses a 450 mm blade tool with HSK-F63 attachment, using the 5-axis interpolation for compound cuts, straight cuts, end milling and trimming.

Clamps and arrangement
Configurable with 8 or 12 automatic clamps along the X-axis. Each clamp operates independently to ensure accurate positioning and flexible handling of varied workpiece sizes. Clamp movement system is contained within the machine base to keep the bed clear.

Post-cut profile machining
Capability to perform profile head machining after cutting and separation of parts, allowing the machine to continue processing and increasing overall production efficiency.

Ideal for
Aluminium, PVC, light alloys, steel

Advantages of the PREMIUM version

• Additional supports on clamps to extend the bearing surface.
• Clamp movement system routed inside the base via pipeholder chains to keep the bed clear and simplify chip removal.
• Tool length measuring device integrated into the machine software for fast, accurate tool setting.
• Centralized grease distribution system to maintain smooth recirculating ball guides and reduce wear.

Image / Diagram
Product images and descriptive illustration of the Premium version included.

Technical specifications

• Model: P527 | P529 PREMIUM
• Type: 5-axis CNC machining center (controlled axes)
• Materials: Aluminium, PVC, light alloys, steel
• Length versions: 7 m, 9 m
• Working modes: single area or pendulum mode with two independent areas
• Electro-spindle: 11 kW (S1)
• Spindle attachment: HSK-F63
• A-axis travel: ±90°
• C-axis travel: ±320°
• Axes: 5 interpolated controlled axes
• Tool magazine on carriage: 16-position rotating magazine
• Disk cutter max diameter: 180 mm
• Blade tool: 450 mm with HSK-F63, housed in dedicated magazine
• Clamps: configurable with 8 or 12 automatic clamps, independently operated
• Clamp movement system: contained in base using pipeholder chains to keep bed clear
• Capabilities: milling, drilling, threading, cutting, end milling, compound cuts and trimming
• Special feature: profile head machining after cutting/separation for continuous production
