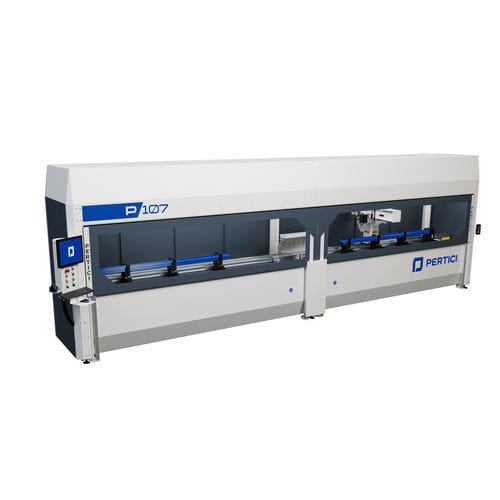

4-axis machining center P107

with swiveling spindlefor steelfor aluminum

Overview
The P107 is a CNC machining centre with 4 controlled axes, designed for milling, drilling, tapping and end machining on profiles and bars. It is suitable for aluminium, PVC, light alloys and steel up to 2 mm thickness. Modular by design to adapt to specific production requirements.

Spindle & Machining
The machine is equipped with a 5 kW (S1) electrospindle with HSK-F50 attachment, enabling machining on the profile at any angle from 0° to 180°.

Clamping & Workpiece Handling
Clamping is provided by four space-saving clamps that allow machining on three faces and loading of relatively short workpieces. Maximum clamp cross-section accepts profiles up to 225 mm base × 260 mm height. Clamps are positioned via a mobile carriage along the X axis for precise placement and collision safety. An optional independent clamp-positioning system is available to increase productivity.

Tooling, Protection & Ergonomics
The P107 features full machine covering and a dynamic 8-position tool magazine located on the work area for fast pick-up from any point. The moving-column concept achieves high processing rates with a relatively compact footprint and provides ergonomic access for loading and unloading workpieces.

Ideal for

• Aluminium
• PVC

Technical specifications

• Machine type: CNC machining centre with 4 controlled axes
• Working range: 7 m (two standard pneumatic zero stops)
• Working modes: single working area or pendulum mode with two independent working areas
• Electrospindle: 5 kW (S1)
• Spindle attachment: HSK-F50 cone
• Machining angle: 0° to 180°
• Clamping: 4 space-saving clamps (allows machining on three faces)
• Maximum clamp cross-section: 225 mm base × 260 mm height
• Clamp positioning: mobile carriage for precise X-axis positioning; optional independent clamps positioning system
• Tool magazine: dynamic 8-position tool magazine on the work area (fast pick-up from any point)
• Protection: full machine covering
• Machine concept: moving-column for high work rates and compact overall dimensions
• Ergonomics: designed for easy loading/unloading of workpieces
• Materials suitable: aluminium, PVC, light alloys and steel up to 2 mm thick
