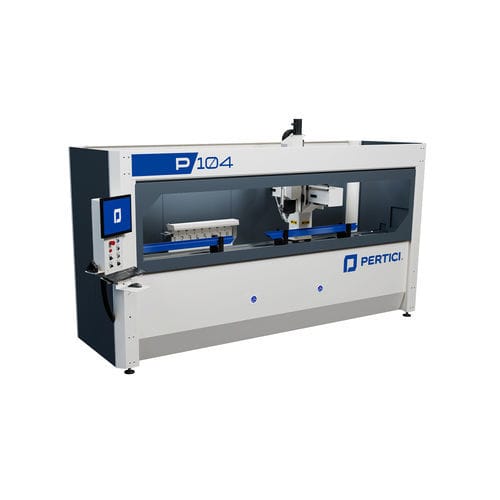

4-axis machining center P104 Essential

swiveling-spindlefor steelfor aluminum

Product overview
CNC machining centre with 4 controlled axes designed to perform milling, drilling, tapping and end milling operations on bars or workpieces made of aluminium, PVC, light alloys and steel up to 2 mm thick. The machine can be configured to match specific production requirements, ensuring flexible and efficient processing.

Main features

• Pneumatic left-hand zero stop allowing profiles up to 3.2 m to be machined; length can be doubled with optional second zero stop
• Electro-spindle with 5 kW power in S1 and HSK-F50 tool-holder; enables machining on the profile at any angle between 0° and 180°
• Profile clamping provided by four clamps with compact dimensions to allow maximum accessibility on three faces and loading of relatively short workpieces
• Maximum clamp cross-section accommodates a profile of 225 mm (base) × 260 mm (height)
• Arrangement along the X axis with a mobile carriage: the clamp is hooked and positioned with high precision, ensuring optimized positioning for machining operations and enhanced collision safety
• 8-position tool magazine fixed to the centre of the bed
• Moving-column concept enabling high production rates with a relatively compact footprint and good ergonomics for loading/unloading

Ideal for
Aluminium

Technical specifications

• Model: P104 Essential
• Axes: 4 controlled axes
• Operations: milling, drilling, tapping, end milling
• Materials: aluminium, PVC, light alloys, steel up to 2 mm thickness
• Pneumatic left-hand zero stop: standard machining length up to 3.2 m (doubling possible with optional second zero stop)
• Electro-spindle: 5 kW (S1), HSK-F50 tool-holder
• Machining angle range: 0° – 180°
• Clamping: four clamps; maximum profile cross-section accommodated 225 mm (base) × 260 mm (height)
• Tool magazine: 8-position, fixed to centre of the bed
• Configuration: moving-column with mobile carriage arranged on the X axis for precise clamp positioning and collision safety
