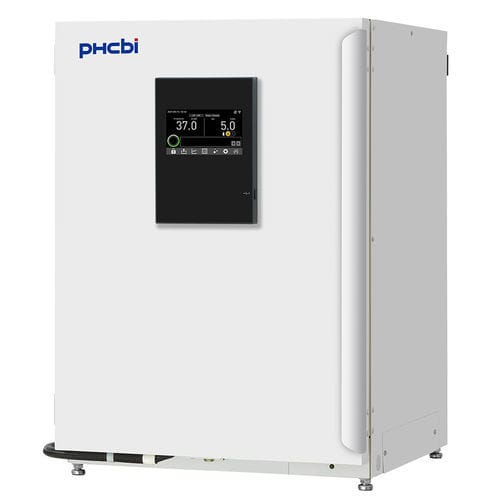

CO2 incubator MCO-173AIC-PE

laboratoryfor cell culturesforced convection

Overview
The PHCbi MCO-173AIC-PE CO₂ incubator is designed to optimize cell culture outcomes and reproducibility through precise CO₂ control. With a 165 L chamber, it is suited for research, clinical and commercial laboratories. Advanced contamination-control technologies, including an inCu-saFe copper-enriched stainless steel interior and optional H₂O₂ decontamination, support reliable and reproducible culture conditions.

Key Features

• Direct Heat and Air Jacket System for accurate, uniform and fast temperature control.
• Dual IR CO₂ sensor for rapid gas recovery without overshoot after door openings.
• inCu-saFe copper-enriched stainless steel interior providing continuous antimicrobial protection.
• 7-inch WVGA full-color LCD touch panel with USB data logging.
• Rounded interior corners and integrated shelf supports for easy cleaning.

Benefits

• Improved cell growth due to stable and reproducible chamber conditions.
• Lower contamination risk thanks to active antimicrobial interior material.
• Scalable 165 L capacity suitable for R&D, clinical and production workflows.
• Efficient operation enabled by fast recovery times and an intuitive user interface.

Technical Specifications

• Model: MCO-173AIC-PE
• Chamber volume: 165 L
• External dimensions (W x D x H): 620 x 730 x 905 mm
• Internal dimensions (W x D x H): 490 x 523 x 665 mm
• Net weight: 69 kg
• Temperature control: AT +5 to +50 °C, fluctuation ±0.1 °C; uniformity ±0.25 °C
• CO₂ control: 0–20 %, fluctuation ±0.15 % (Dual IR)
• Humidity: 95 %RH ±5 %
• Temperature sensor: Thermistor; CO₂ sensor: Dual IR
• Display: 7-inch WVGA full-color LCD touchpanel with USB
• Interior material: Stainless steel copper-enriched alloy (inCu-saFe)
• Shelves: 4 x inCu-saFe stainless steel (470 x 450 x 12 mm), max load 7 kg each, up to 10 positions
• Access port: 1 (rear), Ø 30 mm
• Power: 230 V, 50 Hz; Noise level: 25 dB
• Alarms: power failure; out of temperature; high temperature; out of CO₂ setting; door open (V‑B‑R/V‑B)

Options and Accessories

• SafeCell UV-LED System (MCO-LUVS-PW)
• H₂O₂ decontamination board (MCO-HK-PW) and vapor generator (MCO-50HP-PW)
• CO₂ gas pressure regulator (MCO-010R-PW) and automatic cylinder changeover (MCO-21GCP-PW)
• inCu-saFe shelves and trays, roller base, electric door lock with password
• Communication boards: Analogue 4-20mA, Modbus (MTR-MODB1-PW), OPC-UA (MTR-OPC1-PW)
